FlightLine

Radios_Panel-Mount-Radios_FlightLine

FlightLine

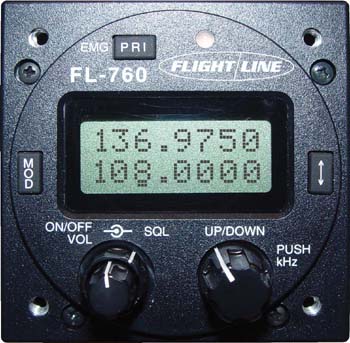

One of the smallest and lightest in the industry! 2-1/4" Panel Mount Transceiver; compact size but loaded with what you need in your aircraft, with a one year warranty.

Features
  • Flip Flop Frequency Selection
  • Built-In 2-Place VOX Intercom
  • Backlit Display
  • 32 Programmable Memory Channel Call-Up
  • 5 w Carrier, 16 w PEP
  • 25 KHz Channel Spacing
  • One Year Limited Warranty
  • Non-TSO

Specifications

  • Frequency range : 118.00 to 136.975MHz (Receive:108.00 to 136.975MHz)
  • Channel spacing : 25kHz
  • Mode : AM (6K00A3E)
  • Number of memory channels : 32
  • Acceptable power supply : 11.7 V or 33 VDC (Negative ground only)
  • Usable temp. range : -20 to +60
  • Frequency stability :+/- 5ppm
  • Current drain : TX: 3A(max) RX 0.8A(max) Standby: 300mA
  • Dimensions : W61 X D159 X H61 (mm)
  • Weight : 430g/14.11oz
  • Exposed dial face : 56.4mm 2 1/4.5 inches
  • Certification: Not TSO
  • Output power : 5 W (carrier), 16W (pep)
  • Modulation : small stage modulation
  • Modulation limiting : 70 to 100%
  • Audio harmonics distortion : Less than 15% (at 85% modulation)
  • Hum and noise ratio : More than 40dB
  • Spurious emissions : -16dBm or less
  • Antenna impedance : 50
  • Receive system : Double conversion superheterodyne
  • Intermediate frequency : 1st : 38.85MHz (Upper) 2nd : 450kHz (Lower)
  • Sensitivity (at 6dB S/N) : Less than 1uV
  • Squelch sensitivity : 0.5uV (Threshold)
  • Selectivity : More than 8kHz (at 6dB), Less than 25kHz (at 60dB)
  • Spurious response rejection : More than 60dB
  • Audio output power : More than 4W (at 4)
  • Side tone : More than 100mW (at 600)
  • Hum and noise : More than 30dB
  • Audio output impedance : Ext. SP 4 (4 to 8), Side tone 600
  • 2-1/4" panel mount
