Avmap Ultra Efis

AVMAP ULTRA EFIS

Part number:

AM-11-12004

900.82 EUR

excl. VAT, excl. shipping

Will be shipped within 1-1 days

Description:

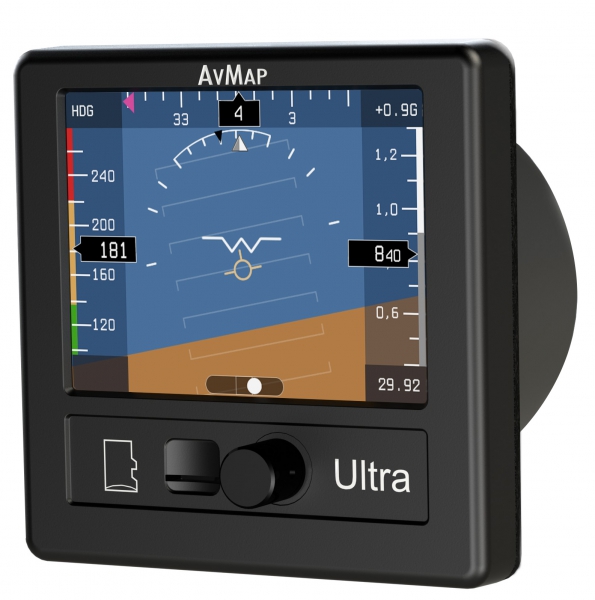

The AvMap Ultra EFIS is a stand alone device with a 3.5 ultra bright, Sunlight Readable LCD display. The unit is compact and ultra light: only 8.1 oz / 230g while other products on the market are around 1 lb 9 oz / 700 g.

Ultra light, Ultra bright the compact standalone EFIS for a safe flight!
Developed with UAV Navigation, the AvMap Ultra is a compact EFIS providing reliable and advanced ADAHRS.

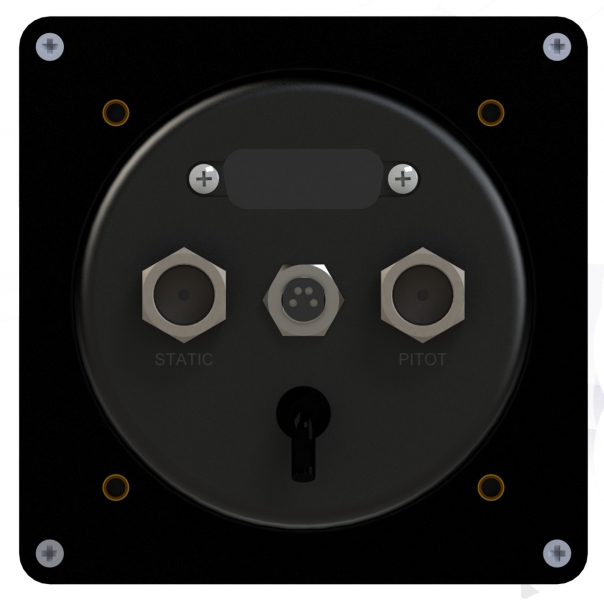

Ultra is designed to be installed in a standard 3 1/8” (79,5 mm) diameter hole. The AvMap Ultra EFIS can be easily installed in your panel and be connected to the GPS receiver (included) and to the aircraft Pitot-static system to provide reliable and advanced ADAHRS.

Designed for light-sport, ultra light and experimental aircrafts, the AvMap Ultra EFIS contains solid-state gyros, accelerometers, magnetic field sensors, air data sensors and UAV Navigation motion processor, the outcome of more than 8 years of motion and flight control experience at UAV navigation.

Ultra EFIS 3.5 PFD screen displays:

Attitude (roll, pitch and heading)
Airspeed from Pitot-static system
Altitude from Pitot-static system
Wind
Side Slip
Vertical Speed

AvMap gives you now the possibility to choose your EFIS solution: stand alone or integrated with EKP V. According to your cockpit space availability and your navigation needs, you can choose two displays or one unique device. The Ultra EFIS is the stand alone solution for panel mounting; otherwise, if you already own an EKP V, you may consider buying the A2 ADAHRS module to be used together with the Cockpit Docking station to complete the AvMap EFIS set. The A2 ADAHRS module in facts extends the functionalities of the EKP V Aeronautical Navigator bringing attitude and airspeed to the moving map and converting it into a centralized Glass Cockpit System for both navigation and primary flight display.

Technical Specifications

Software:

Advanced data fusion capability
Airspeed and Altitude from Pitot-static system
Attitude (roll, pitch and heading) and side slip
Wind indicator

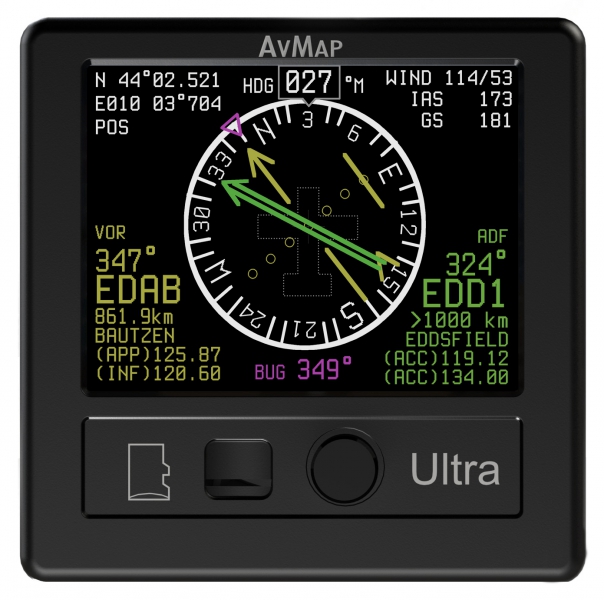

Clear HSI with Course Deviation Indicator (CDI)
Altimeter reference, Heading reference, Aircraft specific V-speed reference values
Preloaded with Jeppesen navigation POI’s (APT, VOR, NDB) for navigation back-up(4 coverages available: North America, South America, Europe-Africa, Asia- Australia)
Exceptional navigation capability in case of loss of GPS signal
Load factor (G-meter)

Hardware:

Dimensions: 95 x 95 x 78 mm (3.74” x 3.74” x 3.07”)
Diameter: 77,5 mm (3.05”); Installing diameter: 79,5 mm (3 1/8”)
Weight: 230 g (8.1 oz)
Display: 3.5”; 320 x 240 pixels, brightness 500 cd/m2
Operational temperature: -20 °C to + 70 °C / -4 °F to +158 °F
3-axis gyros, accelerometers and magnetometers
Acceleration range (3 axis): +/- 8 g
Rotation range: +/- 1600 deg/s
Air data sensors: range 10 to 215 kts, -1000 to 40000 ft
UAV Navigation® Motion processor
Micro SD slot
1.5 m (59”) free wires power supply cable (10/35 VDC)
3 serial ports RS-232
Consumption @ 12 V DC: 100 mA nominal

Included accessories:

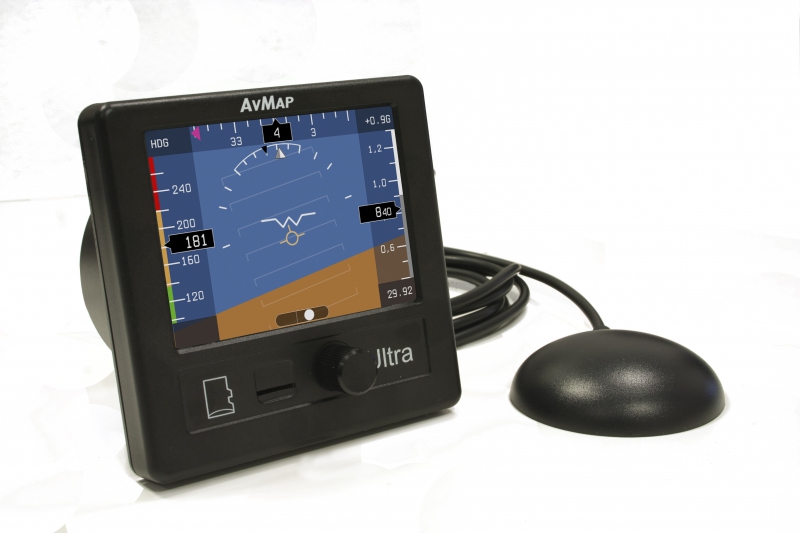

GPS receiver U-Blox NEO 6Q with 1.5 m (59”) cable
Mounting KIT (Cutting template, 4x metal washers and 4x screws)
1x 1A fuse holder
Blank microSD card
Microfiber cleaner cloth

Download AvMap Ultra EFIS - manual
