GARMIN GNS 430W GPS NAV COM W/ HARNESS

Part number: 11-06750
GARMIN GNS 430W GPS NAV COM W/ HARNESS
11189.88 EUR
incl. 19% VAT, excl. shipping
EA
please call
Available Quantities:
unknown
Description:

The GNS 430W can be sold over the counter to experimental aircraft (must verify). For certified aircraft, 430W must be installed at a Garmin dealer.

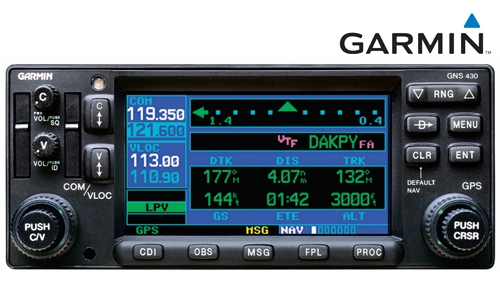

Garmin GNS 430W
The GNS 430W is an all-in-one GPS/Nav/Comm solution. It features a WAAS-certified GPS, 2280-channel capacity comm and 200-channel ILS/VOR with localizer and glideslope. Traditionally it would take a host of components to provide the capabilities of this one smart box. High-speed 5 Hz processing makes navigation calculations and map redraw rates five times faster than earlier GNS series navigators.

GNS 430W comes with built-in WAAS navigation capabilities. It is approved to fly LPV “glideslope” approaches without reference to ground-based navaids of any kind. Featuring an advanced 15-channel receiver capable of five position updates per second, GNS 430W meets the FAA's stringent TSO C146a standards for WAAS "sole means" navigation — providing vertical and lateral approach guidance into thousands of U.S. airports previously inaccessible in IFR conditions.

GNS 430w's 4-inch high-contrast display with brilliant colors makes it easy to read and interpret pilot-critical information. Effective use of color makes it easy to see your position relative to ground features, chart data, navaids, flight plan routings, approach procedures and more. Conveniently scan information from wide viewing angles, even in direct sunlight.

GNS 430W seamlessly integrates built-in terrain and navigation databases, providing a clear, concise picture of where you are and where you’re heading. The 430W's huge Jeppesen® database, updated with front-loading data cards, contains location reference for all airports, VORs, NDBs, Intersections, Flight Service Stations, published approaches, SIDs/STARs, Special Use Airspace and geopolitical boundaries. A detailed basemap shows airports, cities, highways, railroads, rivers, lakes, coastlines and more. Using information from the built-in terrain and U.S. obstacles databases, the 430W displays color coding to graphically alert you when proximity conflicts loom ahead

Features

  • Glidescope information on GPS approaches
  • 5 Htz update rate
  • Faster processor for faster zooming and panning
  • Ability to fly curved flight paths with roll steering autopilot
  • Terrain page displayed with higher resolution
  • Improved interface with GDL69 datalink WX
  • Ability to interface with GDL69A and function as an XM Music controller

Specifications

  • Unit dimensions, WxHxD: 6.25"W x 2.65"H x 11.0"D (15.9 x 6.7 x 27.9 cm)
  • Display size, WxH: 3.3"W x 1.8"H (8.4 x 4.6 cm)
  • Display resolution, WxH: 240 x 128 pixels
  • Display type: 8 color DSTN LCD
  • Weight: 6.6 lb (3 kg)
  • Voltage range: 14-28
  • Built-in VHF Comm: yes, 8.33/25 kHz channel spacing
  • Transmit power: 10 watts minimum; 16 watts minimum (GNS 430A)
  • Built-in VOR/Loc/Glideslope: yes, ICAO annex 10 FM compliant
  • Receiver: 12 channel
  • Warranty: 2 years
UnitEA
HazardousNo
OversizeNo
Weight4.808 kg
