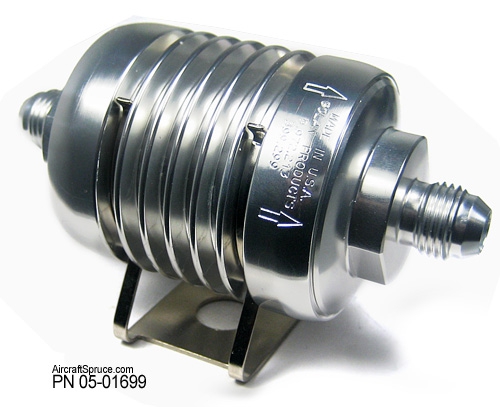

FUEL FILTER AN WASHABLE REUSEABLE CERTIFIED

This award winning high performance billet, stainless steel, washable and reusable Filter is USA made, high performance billet, stainless steel, washable and reusable superb flow filters. For those who want and appreciate quality, these high performance billet, stainless steel, washable and reusable filter will take you to the highest level of filtration performance.

Filter Element: Designed and engineered for the aerospace industry, for rugged, high temperatures, and extreme filtration environments, made of pleated 304 stainless steel, 10 micron (.000392"), 1.375"(inch)diameter. there is a total of 6.2 square inches of effectivefiltration area, providing maximum flow of 900 gallons per hour simultaneously with no restriction and no drop in pressure.

The filter element is washable and reusable indefinitely, cleaned easilywith air or soluble rinse. Bodies: The finest CNC machining from 6061 aluminum, Clear Anodize, give you the clearance for use in any type of fuel, oil etc. The billet, stainless steel, washable, reusable, and performance filters assembly is reversible to provide full fuel bypass to prevent fuel starvation in racing applications. The interchangeable threaded end caps are sealed with rubber O-Rings that will withstand over 6,000 pounds per square inch of pressure.

Filters can be used in other applications such as: Transmission, Power Steering, Rear End Gears and more. Note: For other then fuel applications, may require a large micron element.

Specifications

• Length: 4.25”
• Diameter: 2.0”
• Flow rate: 15.3 gpm
• Weight: 5 oz.
• Fitting Size: AN6
• Filter medium: 1.375” dia. 304 pleated SST disk
• Filter Efficiency: 10 Micron
• Operating Pressure: 8,000 PSIG
• Drop in pressure: 1.0%
