AVMAP ULTRA EFIS

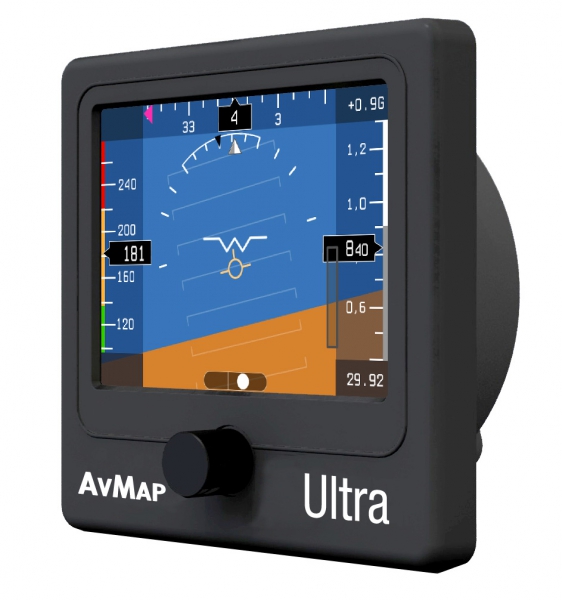

The AvMap Ultra EFIS is a stand alone device with a 3.5” ultra bright, Sunlight Readable LCD display. The unit is compact (only 1.95” / 49.5 mm installing depth) and ultra light: only 5.1 oz / 145 g while other products on the market are around 1 lb 9 oz / 700 g.

• Ultra light, Ultra bright the compact standalone EFIS for a safe flight!
• Developed with UAV Navigation, the AvMap Ultra is a compact EFIS providing reliable and advanced ADAHRS.

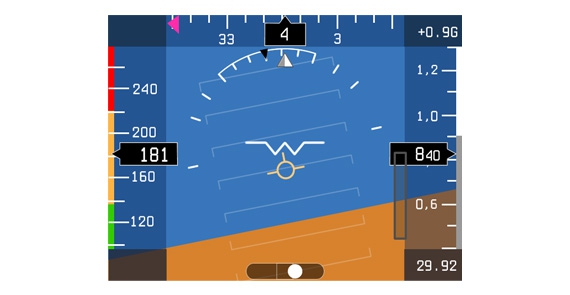

• Attitude (roll, pitch and heading)
• Airspeed from Pitot-static system
• Altitude from Pitot-static system
• Wind
• Side Slip
• Vertical Speed

• Dimensions: 3.74” x 3.74” x 1.95” (95 x 95 x 49.5 mm)
• Diameter: 82 mm (3.23”); installing diameter: 3.3” (84 mm)
• Weight: 5.1 oz (145 g)
• Display: 3.5”; 960 x 240 pixels, brightness 300 cd/m2
• 3-axis gyros, accelerometers and magnetometers
• Acceleration range (3 axis): +/- 8 g
• Rotation Range: +/- 1600 deg/s
• Air data sensors: range 10 to 250 kts, -1000 to 40000 ft
• UAV Navigation® Motion processor
• Micro SD slot (for data logging)
• 59” (1.5 m) free wires power supply cable (10/35 VDC)
• 3 serial ports RS-232
• Consumption @ 12 V DC: 100 mA nominal

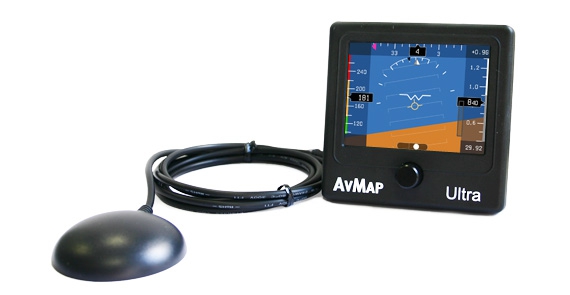

• GPS receiver U-Blox NEO 6Q with 59” (1.5 m) cable

• Advanced data fusion capability
• Airspeed and Altitude from Pitot-static system
• Attitude (roll, pitch and heading) and side slip
• Wind indicator

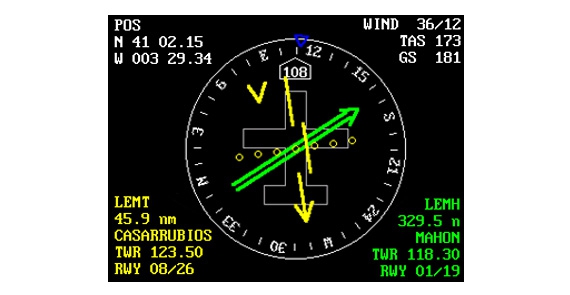

• Clear HSI with Course Deviation Indicator (CDI)
• Altimeter reference, heading reference, aircraft specific V-speed reference values
• Navigation data relative to reference navigation points
• Intelligent position calculation (even in absence of GPS)
