FAA-PMA Approved

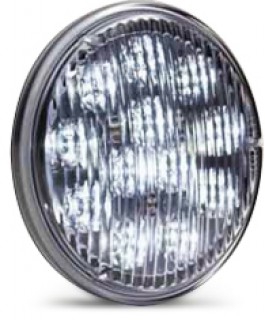

Parmetheus PAR36 LED lights are a drop-in replacement for outdated Halogen lamps. PMA Approved, lightweight, low-current and moisture resistant, they provide stable light output for thousands of operating hours. These LED lights are 40% brighter output than the original Parmetheus Series assemblies.

LED lighting is the ideal technology for aviation applications. Whelen LED lights are time and field-tested for reliability and long-life performance under the tough conditions required by Fire, Emergency, DOT and Law Enforcement professionals around the world.

STC-PMA

Whelen Parmetheus Plus LED Replacement Features:

• Direct replacement for outdated PAR36 Halogen and HID lamps.
• First commercially available PAR36 LED for Aviation applications.
• 10,000 hour operating life.
• Available in Landing and Taxi versions.
• Convenient "Drop In" design for ease of installation: Power wiring attaches to brass screw terminals; Weight is virtually identical to previous PAR36 lamps; Assembly design includes clocking notch.
• Polycarbonate, replaceable, hard-coated outer lens.
• Metal, heat dissipating coated housing.
• Whelen TIR™ (Total Internal Reflector) technology rivals strobe in intensity and effectiveness.
• Proudly designed and manufactured in the USA.

Whelen Parmetheus Plus LED Replacement Specifications:

• Model: P36P2T
• Type: Taxi (Spreader Optic, 40 degree)
• Amps: .6
• Volts: 28 VDC
• Size: 4.38" Round x 1.75 Face to Screw Terminal

Documents:

• STC (PDF)
• PMA Supplement (PDF)
• Install Manual (PDF)
• Cross Reference Replacement Guide (PDF)
• Product Brochure and Replacement List (PDF)
• Drawing (PDF)
