Part number: | 10-03440 |

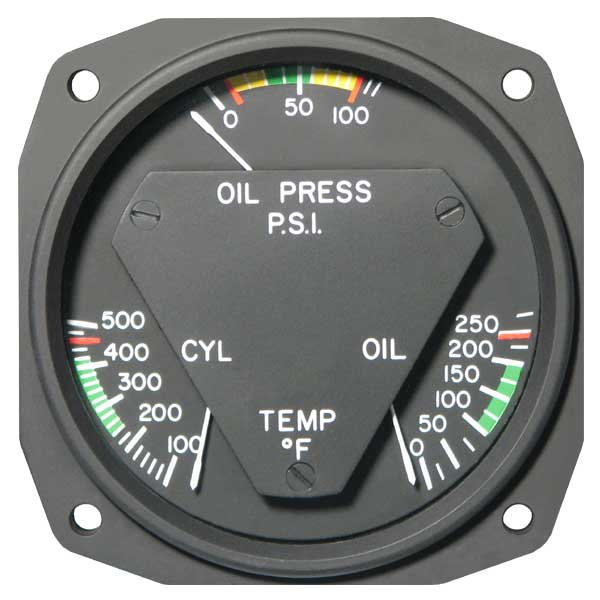

This gauge consists of three moving coil meter movements within a 3" diameter case. Oil temperature is sensed by an MS28034-1 resistance bulb and cyl-inder head temperature is sensed by an AN5546-1 resistance bulb. Oil pres-sure is sensed by a VDO Transducer. Connection is made by a single cannon type connector: Part Number MS3106A-14S-6S.
18-1002-1 (Refer to Image #1)Note: Please use Cannon Plug MS3106A-14S-6S (10-05258) for instruments and MS3106A-12S-3S (10-00958) for resistance buld.
Made in the USA
I have a jabiru 2200 engine. Is this a correct instrument to measure oil pressure, temp and cht?
The RC Allen Oil Pressure / Temp / CHT Gauge is an electric gauge that works great on a wide variety of engines. Please refer to the overview page to see whether p/n 18-1002-1 or 18-1002-5 best fits your specifications.
What is the difference between a RC Allen 18-1002-1 and a 18-1002-5? Thanks
The difference is the 18-1002-5 has range markings and the 18-1000-2 does not have any range markings.
Can RC Allen gauge 18-1002-5 be used in a certified aircraft?
No, part number 18-1002-5 is not TSO'd and can not be installed in certified aircraft.
Unit | EA |
Hazardous | No |
Oversize | No |
Weight | 0.567 kg |
