RC ALLEN 18-1002-1 OIL PRESS / TEMP / CHT 14V

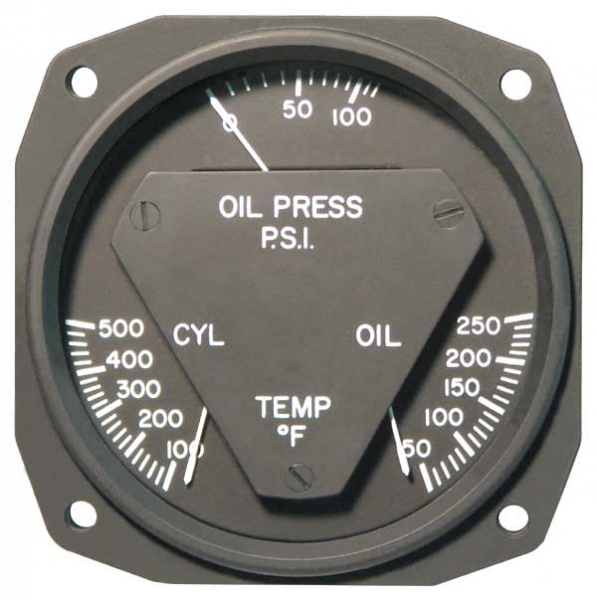

This gauge consists of three moving coil meter movements within a 3" diameter case. Oil temperature is sensed by an MS28034-1 resistance bulb and cyl-inder head temperature is sensed by an AN5546-1 resistance bulb. Oil pres-sure is sensed by a VDO Transducer. Connection is made by a single cannon type connector: Part Number MS3106A-14S-6S.

• Oil Temperature range from 50° to 250°F
• Oil Pressure range from 0 to 120psi
• Cylinder temperature from 0 to 500°F

• Oil Temperature range from 50° to 250°F
• Green Arc from 100° to 200°F
• Red line at 249°F

• Oil Pressure range from 0 to 120psi
• Red line at 10psi and 100psi
• Yellow Arc from 10psi to 30psi
• Green Arc from 30psi to 60psi
• Yellow arc from 60psi to 100psi

• Cylinder temperature from 0°to 500°F
Green Arc from 220° to 420°F
• Red Line at 460°F

Note: Please use Cannon Plug MS3106A-14S-6S (10-05258) for instruments and MS3106A-12S-3S (10-00958) for resistance buld.

Made in the USA

• Resistance Bulb MS28034-1 P/N: 10-00953
• Cannon Plug MS3106A-12S-3S P/N: 10-00958
• Amphenol Connector MS3106A14S-6S P/N: 10-05258

I have a jabiru 2200 engine. Is this a correct instrument to measure oil pressure, temp and cht?
The RC Allen Oil Pressure / Temp / CHT Gauge is an electric gauge that works great on a wide variety of engines. Please refer to the overview page to see whether p/n 18-1002-1 or 18-1002-5 best fits your specifications.

What is the difference between a RC Allen 18-1002-1 and a 18-1002-5? Thanks
The difference is the 18-1002-5 has range markings and the 18-1000-2 does not have any range markings.

Can RC Allen gauge 18-1002-5 be used in a certified aircraft?
No, part number 18-1002-5 is not TSO'd and can not be installed in certified aircraft.
