RC ALLEN 18-1000-2 28VDC

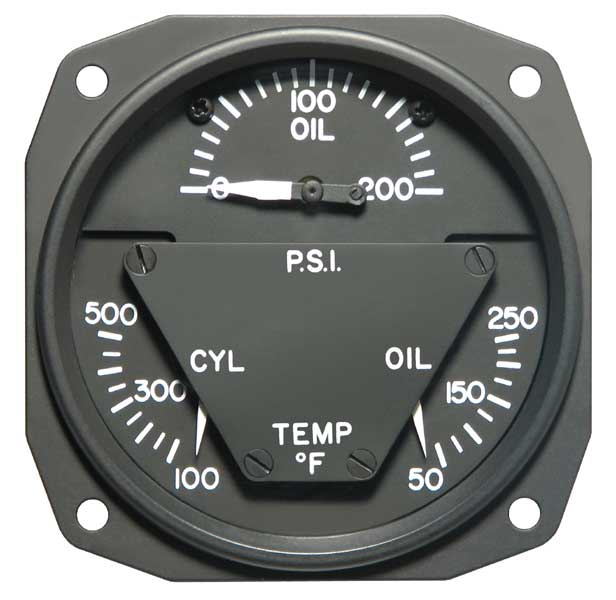

This gage consists of three independent gages contained within a standard 3" diameter case. Oil temperature and cylinder head temperature gages are moving coil meter move-ment operated by MS28034-1 and AN5546-1 resistance bulbs respectively. Connection for the temperature gage is by cannon type connector: P/N MS3106A-14S-2S. FAA TSO Approved C47.

18-1000-2
28 VDC
Oil Temperature range from 20° to 120°F
Oil Pressure range from 0 to 200 PSI
Cylinder head temperature from 50° to 250°F
