GARMIN GDL 39 ADS-B & GPS PORTABLE FOR 696 & 695

Part number:

11-10725

GARMIN GDL 39 ADS-B & GPS PORTABLE FOR 696 & 695

627.56 EUR

incl. 19% VAT, excl. shipping

Expected shipping date is Wednesday 29 May if you order before 16:00 Wednesday 22 May. This information is valid for up to 2 EA

Available Quantities:

In 10 days:

2 EA

Description:

Note: For use with the Garmin Pilot App and other Garmin Portable systems only.

Note 2: GDL 39 can only receive ADS-B information in the USA.

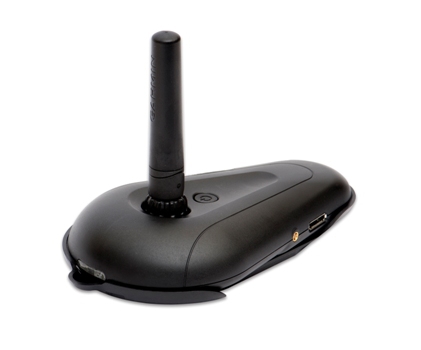

The GDL 39 offers the complete package that combines a dual-link ADS-B receiver and Garmins industry-leading GPS receiver into a single unit that streams ADS-B datalink traffic and subscription-free weather to select Garmin aviation portables including the aera® 796/795, aera 500 series, GPSMAP® 696/695, G3X experimental flight display and select Garmin Pilot app compatible devices.

Subscription-free weather information is continuously broadcast using the FAAs 978 MHz UAT uplink and is similar to the basic services offered by leading commercial satellite weather providers.

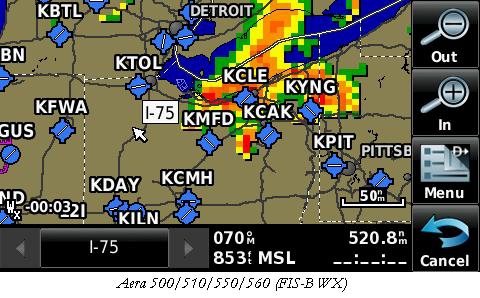

Weather services include access to NEXRAD imagery (which can also be put in motion as new data is collected on select devises), METARs, TAFs, winds and temperatures aloft, PIREPs, NOTAMs and more.

Pilots can also receive ADS-B datalink traffic information with alerts to help identify potential traffic conflicts. In addition to receiving traffic data from ADS-B ground stations, the dual-link GDL 39 features direct air-to-air ADS-B reception on both ADS-B frequencies (1090 and 978 UAT) to provide a more comprehensive view of potential flight path conflicts. In order to maximize available traffic information for the display, the aircraft should also be equipped with a compliant ADS-B out solution like the GDL 88 or GTX 330ES/33/23 ES transponders.

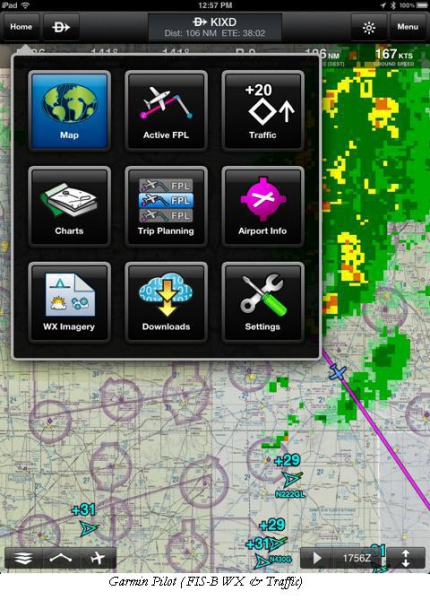

The GDL 39 provides weather and traffic information via wireless support for compatible mobile devices like the iPad and Andriod tablets via built-in Bluetooth® connection and wired connections for compatible Garmin portables. Coming later this year, Bluetooth support will be added to the aera 795/796 via a free software download. The Bluetooth connection also allows two devices to connect to GDL 39 at once wirelessly, making it possible for two-pilot crews to view traffic and weather on separate devices from the same GDL 39. Garmin products including the aera 795/796, 500/510/550/560, GPSMAP® 695/696 and G3X series can connect to the GDL 39, as well as an external power source, via a wired connection. Traffic only compatible displays include theGPSMAP 496/495 and GPSMAP 396.

The portable design of the GDL 39 also includes a built-in WAAS GPS receiver, which brings Garmins industry-leading GPS location information to wirelessly connected mobile devices. The GDL 39 integrates seamlessly with the Garmin Pilot app to support its navigation functions with reliable and accurate GPS capability.

Antenna/Receiver

Unit dimensions, WxHxD: 3.5" x 1.9" x 6.0" (8.89 x 4.83 x 15.24 cm)
Weight: 0.48 lb (0.22 kg)
Operating temperature: 20°C to +60°C (-4°F to 140°F)
Operating altitude: To 55,000 ft
Power input: 10 to 32 VDC, 3.5 W max.
Battery charge power: 4.5 W max
Total power while charging: 8.0 W max

Optional Battery Assembly

Type: Lithium Ion Rechargeable Battery
Unit dimensions, WxHxD: 3.8" x 0.9" x 6.4" (9.65 x 2.29 x 16.26 cm)
Output voltage: 7.4 VDC
Charging voltage: 10-32 VDC
Charge temperature:Unit may not charge at extreme temperatures below 0° C (32° F) or above 32° C (90° F)
Operating temperature: -20° C to +60°C (-4°F to +140° F)
Typical battery operating time: up to 4 hours

GDL 39 Manual (PDF)

GDL 39
Mounting bracket
Suction Cup for Cable
Pilot's Guide
Power adapter (based on selection)
Free Trial of Garmin Pilot App

by DR. VAUGHN DECOSTER 02/14/2013
I just bought the GDL39 and bluetooth it to an iPad using GarminPilot ap... works great! The ap is very easy to use, has geo-ref approach plates, safetaxi airport diagrams, and received weather at 2,000' AGL, traffic picked up on the ground and I'm flying out of KEVV, not a busy place. I don't have a ADS-B out transponder so I'm dependent on other aircraft to trigger the ground station but that hasn't been a problem. I had been a faithful Foreflight user but read some concerns about Stratus. I also like that two devices can bluetooth to the one unit. The Garmin product works flawlessly! My Long-EZ cockpit is quite filled with LCD screens, may need to get the iPadMini, a safety issue of course, that's my rationale for the wife.

by Mark Morris 04/07/2013
Just flew 20 IFR hours across the southern US with the GDL39 and the Garmin iPad app. Worked as advertised. Both current NEXRAD and METARS were invaluable on this trip. The Garmin app continues to improve with every release and there were no integration issues with the GDL39. Purchased the external battery and it lasted right at 4 hrs. Left on the glareshield until it became really hot and it did not shutdown once.

by Kirk K 04/26/2013
I have used the GDL39 with an iphone 5 for several months now with no problems. The additional battery will last roughly 4 hours. The ADS-B weather and information in flight is invaluable.

by Ron Wise 08/15/2013
What a Great piece of equipment. Always a pleasant surprise when something is even better than you anticipated. Just flew from DFI to JYO and return, it worked flawlessly. Received the unit last week, coupled it to my 696 placed it in my car so the software could update imagine my surprise when after the update finished I picked up weather. While flying it typically shows receiving 5 stations. If you already own a Garmin 695 or newer this is must have, worth every penny. At the airport had it wired to my 696, Bluetoothed to my Nexus 7 2nd Gen, and a friend had it Bluetoothed to his Iphone. Awesome

by Jeff Grigg 08/27/2014
Works great, read all the other reviews and I agree 100%.
One small thing. When you first pair it the GDL 39 must be able to pick up a GPS signal, which means pair it the first time outside.
We tried to do it in the office, no dice. This instruction is not really front and center and we found it on the Garmin Pilot app not in the instruction book.

Q+A

Can this device be used with area 500 and iPad simultaneously?
Yes you can hard wire one device (aera 500, 510, 550, 560, GPSMAP 696, 695, aera 796 or 795) and also output to an iPad or Android device at the same time.

Can this device output to multiple iPads at once or is it one iPad per GDL-39 receiver? Regarding part # 11-10728
The signal sent out by the GDL-39 receiver can be received by up to two iPads simulataneously.

Can P/N 11-10729 GDL 39 for the AERA 796 Bluetooth to the GDL 39 or is this the wired version to the GDL 39?
Part number 11-10729 is the wired version which connects the 796 directly to the GDL 39 with a single cig charging plug for both units. For the Bluethooth version you will want to order 11-10728.

Does the Garmin GDL 39 come with hardware/cable to connect to Aera 560?
If you order the GDL 39 to Aera 560 which is our part number 11-10727 it will come with a power and data cable to connect and power both units.

Can the GDL 39 be hard wired to a Garmin 496 and connected via Bluetooth to an iPad at the same time and will it operate both ForeFlight and FLYQ on the iPad?
The Garmin GDL 39 will not work with ForeFlight and is only designed for use with the Garmin Pilot App. You can connect to the 496 (traffic only no ADS-B weather on the 496) via the 496/GDL 39 cable and you can still connect one additional iPad/Android device via Bluetooth (again only with the Garmin app).

I have an Aera 500 (which I love) that mounts in a cradle that is plugged into a 12V cigarette lighter socket. I want to get traffic shown on my Aera. How does the GLD-39 connect to Aera 500 series?
The Aera 500 series GDL 39 cable is a single plug with three ends. One with a GDL 39 plug, one we an Aera 500 series bracket (like the one on the yoke mount) and lastly a cigarette plug to charge both.

Does the Bluetooth version of the GDL 39 for the iPad/Android/796/795 come with a cigarette lighter plug for power in the box?
Yes, the Bluetooth version comes with GDL 39, cigarette lighter plug and mount. This version can connect to two Bluetooth devices.

I am interested in a Garmin GDL 39. I already have an AERA 560 bare wire connector, which I have going to power and connected to an ELT. I have both the AERA 560 and an IPAD that I could use with the GDL 39. If I'm already using the Garmin bare wire connector, what remaining options do I have?
The GDL 39 will Bluetooth to the iPad. You can however do this as the ELT would get the aera 560 data through the 39 bare wire cable 11-10730 using the serial pass through option that is discussed in the GDL 39 users manual.

The GDL 39 receives ADS-B traffic and weather. However, The Aera 500 was never intended to display weather (only the 510 and 560 for XM). Does this mean that if I connect the GDL 39 to my Aera 500 I only get traffic or will I also see weather?
The Aera 500 and 550 cannot do XM weather but can do ADS-B weather and traffic via the GDL 39.

I have a Garmin 696. Does the GDL 39 have a separate part number for mating to 696? I note a power cable to interconnect & power both units is required - it this included with the GDL 39?
The part number for the GDL 39 (with plug for GDL 39 & 696 to a cigarette plug) is 11-10725. If you want to hard wire both units you will need to order 11-10730 (GDL 39 with bare wire cable) and part number 11-07056 (power data cable for the 696). This will give data for the 696 and also Blutooth data to one other device.

I have an Aera 560, if I add a GDL 39 receiver it must be hard wired? Can I also connect the Garmin Pilot Android app via Bluetooth to receive data at the same time?
Yes you will have to hard wire the Aera 560 as it does not have a Bluetooth feature (use 11-10727). As the GDL 39 has two inputs you can Bluetooth to another Bluetooth device using the Garmin pilot app.

What is battery life for the GDL 39?
Per the Garmin manual, the average battery life is 4 hours.

Do all GDL 39 units come with an internal battery or is that only available via the optional base mount add on?
No, the GDL 39 back up battery add-on is an additional accessory. An internal battery for the GDL 39 does not exist.

Can the GDL 39 ADS-B and GPS Receiver display weather information internationally, such as in my country Mexico?
No, this unit is intended to be used with the Garmin Pilot App in the USA only.

What traffic services will I receive from the GDL 39?
The GDL 39 has the ability to receive two types of traffic; air-to-air and ground-to-air. The GDL 39 can detect and display other aircraft in the vicinity of your aircraft, that are equipped with an ADS-B Out transponder with ES (Extended Squitter) or a Universal Access Transceiver (UAT). The GDL 39 also has the ability to receive Traffic Information Service (TIS-B) from FAA ground stations transmitted over the 1090 MHz datalink. TIS-B traffic includes targets being tracked through ADS-B technology and paints a comprehensive picture of traffic within +/- 15NM and +/- 3,500 feet of your position. This traffic service will only be available to aircraft that are equipped with an approved ADS-B Out solution and a certified WAAS GPS position source.

How can I update the firmware on the GDL 39?
The process for updating the firmware will vary depending on what device you are using with the GDL 39. If you are using the GDL 39 along with a Garmin aviation portable device the software will be received through the portable device. The software for your portable can be obtained by either visiting myGarmin.com or using our WebUpdater program. If you are using the GDL 39 along with an iOS or Android moible device you can use the GDL 39 Utility Application available on the iTunes App Store and the Google Play Store. This is a free download and requires a Bluetooth connection between the GDL 39 and the mobile device. In either case, the unit will only update when connected to an external power source.

How many devices can I connect to the GDL 39?
The GDL 39 can be connected to as many as three devices at one time. A connection to the GDL 39 can be made two different ways; either by using a power/data cable or a Bluetooth connection. The GDL 39 can be connected to several Garmin aviation portables via a power/data cable (included with the GDL 39) as well as two bluetooth enabled devices (i.e. aera 796, iPad, or Android tablet). Compatible Garmin Aviation products include the aera 795/796, aera 5XX Series, GPSMAP 695/696, GPSMAP 495/496, GPSMAP 396, G3X Garmin Pilot Application for iOS and Android tablets and phones.

What weather services will I receive from the GDL 39?
The GDL 39 has the ability to receive subscription free Flight Information Service (FIS-B) that is broadcast from FAA ground stations around the United States and the Gulf of Mexico. FIS-B weather products include NEXRAD in the Continental U.S., NEXRAD Regional, TFR, TAF, PIREP, NOTAM, SIGMET/AIRMET, METAR, and Winds Aloft information. One key difference between FIS-B and satellite based weather services is that FIS-B is broadcast from the ground upward. Therefore your proximity to the ground station may present some line-of-sight disturbances and services may not be received until airborne.

Can the GDL 39 display traffic and weather on my certified panel mounted avionics?
No, the GDL 39 will only interface with Garmin Aviation portables and experimental products, as well as iOS and Android tablets and phones. These products include the aera 796/795, GPSMAP 696/695, aera 5XX Series, GPSMAP 496/495, GPSMAP 396, and the G3X.

I currently have a Garmin GPSMAP 696 mounted in a panel dock, hard-wired, with a Zaon XRX for traffic, and Sirius XM for weather. If I install a 330ES transponder and a GDL-39, will this satisfy the FAA 2020 mandate?
The GDL 39 is an ADS-B in device. In order to comply with FAA 2020 mandate, you would need an ADS-B (out) compliant. ADS-B out equipment is always installed in the aircraft and certified (never portable).

Unit	EA
Hazardous	No
Oversize	No
Weight	0.953 kg
