G3X ADD-ON AUTOPILOT HARNESS

Designed around the GDU 370/375 series of panel-mount displays, the G3X suite provides an easy-to-install, non-TSO’d option that lets you grow your system as your needs and budget dictate. For example, you can start with a single glass display that combines full primary flight (PFD) attitude/directional guidance with electronic engine monitoring and detailed moving-map multifunction (MFD) capabilities. Then, should you choose to expand your cockpit configuration, you can opt for separate PFD and MFD screens – or even add a co-pilot’s flight display. A built-in network interface allows up to three displays to be interlinked in the panel, with full reversionary backup for added safety and redundancy.

Simplicity meets sophistication in the G3X flight deck. Using sophisticated graphics modeling, the integrated SVX™ synthetic vision technology provides a 3-D “virtual reality” perspective of what lies ahead. The system pulls together information from the built-in aviation basemap and terrain elevation database, letting you clearly visualize terrain features, obstacles, waterways and airport locations on the 7-inch high-definition display. By adding a GTX 330 Mode S transponder, your G3X display Traffic Information Service (TIS) alerts to help identify aircraft in your proximity. The system can also be coupled with the TruTrak GX Pilot autopilot system to provide sophisticated flight control modes including altitude preselect and capture, heading hold and GPS as well as ILS navigation. The autopilot can even be used to fly WAAS approaches when used in conjunction with a GNS 400W/500W series unit.

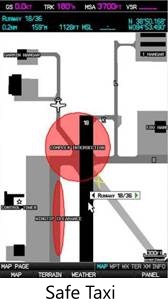

In addition to its detailed terrain map, the G3X system comes preloaded with geo-referenced Garmin FliteCharts®, which displays a graphical representation of your aircraft overlaid directly onto NACO-format IFR approach plates. FliteCharts also allows you to easily find and view all U.S. AeroNav Services, standard terminal arrival routes (STARs) and more. For pilots who prefer Jeppesen charts and diagrams, Garmin also offers ChartView™, which utilizes Jeppesen’s extensive library to provide global geo-referenced charting capabilities (unlock card plus subscription is extra). The Garmin SafeTaxi® service is also built-in, providing geo-referenced diagrams for over 900 U.S. airports. Plus, AOPA Airport Directory data puts detailed information on more than 7,400 U.S. Airports right at your fingertips.

The G3X system uses the latest in GPS-aided digital ADAHRS (Air Data and Attitude Heading and Reference Systems). Leveraging solid-state sensors and sophisticated attitude determination and integrity monitoring algorithms used in Garmin’s high-end G1000 system, the G3X’s ADAHRS provides highly accurate and reliable referencing of your aircraft position, rate, vector and accelera­tion data. Better still, the complete sensor package – ADAHRS and EIS engine monitoring, plus magnetometer and temperature probe – takes up just a fraction of the space and weight previously required by conventional gyro-based instrument systems.

All harnesses include wiring for dual screen GDU 375 and/or GDU 370, GSU 73, GMU 44 and includes a full harness for engine probes/sensors.

IFR harnesses are pre-equipped for the GNS 430W, SL 30, SL 40, GMA 240, GTX 327, GTX 330. VFR Harnesses are pre-equipped for the SL 40, GTX 327, GMA 240.
