Concorde Sealed Battery RG-28-7 from Aircraft Spruce Europe

Concorde Sealed Battery RG-28-7

Part number:

11-11613

4968.40 EUR

incl. 19% VAT, excl. shipping

Available Quantities:

unknown

Description:

The RG-28-7 is a Concorde Platinum Series Aircraft Battery. The Platinum Series is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

C1 @ 23°C (74°F) = 9.0 Ah
C1 @ -18°C (0°F) = 6.6 Ah
C1 @ -30°C (-22°F) = 4.3 Ah

Avionics Battery for lighting, standby, emergency power. Protects and extends the life of other avionics. Concorde's Emergency Batteries float directly on the DC buss with no need for a dedicated charger. This results in a high inrush current which extends battery life with fast recovery time from discharge. With the battery floating directly on the buss, transient spikes in the DC power are absorbed. These batteries are self regulating on charge and will take only the current required to maintain it at full charge.

Features include:

Volt Meter
Test Button

Recombinant Gas - The RG Series are low resistance, valve regulated lead acid (VRLA) batteries.

Maintenance free
Constructed with non removable vent valves no addition of electrolyte or water required
Factory tested to assure airworthiness
Manufactured with absorbed glass mat separators (AGM)

Primary Aircraft Purpose:Emergency Aircraft Battery
Voltage:28v
Rated Capacity C1 = 1 hr. rate in ampere hours: 9.00
Max Weight: 30.00 lb / 13.6 kg

Click here to download BATTERY WARRANTY (PDF)
Click here to download FAA-PMA Installation Eligibility List PDF
Click here to download Storage and Boost Charge Recommendations PDF
Click here to download Concorde Battery AS9100 Certificate of Registration
Material Safety Data Sheets(Click on link to download PDF)
Valve Regulated (RG® Series) Lead Acid Batteries
Lead Acid Batteries
Dry Charged Batteries

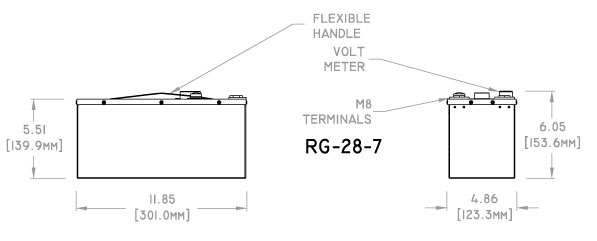

Download RG-28-7 Drawing
