Clevis Pin MS20392-1C25 from Aircraft Spruce Europe

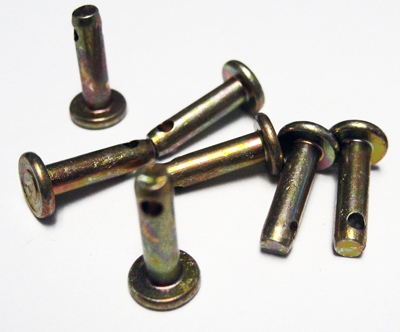

Clevis Pin MS20392-1C25

Part number:

AN392-25

1.51 EUR

incl. 19% VAT, excl. shipping

Expected shipping date is Wednesday 24 December if you order before 16:00 Wednesday 17 December. This information is valid for up to 225 PC

Available Quantities:

In 14 days:

225 PC

Description:

Made of alloy steel per specification MIL-P-5673 and cadmium plated per QQ-P-416A, Type lI, Class 3. Provided with drilled hole for cotter pin. Used with clevis forks and in secondary controls which are not subjected to continuous operation.

AN392 MS20392 -1C 1/8"
AN393 MS20392 -2C 3/16"
AN394 MS20392 -3C 1/4"
AN395 MS20392 -4C 5/16"
AN396 MS20392 -5C 3/8"

Dash No.	Effective Length (in.)
-7	7/32
-9	9/32
-11	11/32
-13	13/32
-15	15/32
-17	17/32
-19	19/32
-21	21/32
-23	23/32
-25	25/32
-27	27/32
-29	29/32
-31	31/32
-33	1-1/32
-35	1-3/32
-37	1-5/32
-39	1-7/32
-41	1-9/32
-43	1-11/32
-45	1-13/32
-47	1-15/32
-49	1-17/32
-51	1-19/32
-53	1-21/32
-55	1-23/32
-57	1-25/32
-59	1-27/32
-61	1-29/32
-63	1-31/32
-65	2-1/32
-67	2-3/32
-69	2-5/32
-71	2-7/32
-73	2-9/32
-75	2-11/32
-79	2-15/32
-81	2-17/32
-83	2-19/32
-85	2-21/32
-87	2-23/32
-89	2-25/32
-91	2-27/32
-93	2-29/32
-95	2-31/32
-97	3-1/32
