CAMLOC FASTENER 2600-7S

Part number:

2600-7S

11.10 EUR

incl. 19% VAT, excl. shipping

Expected shipping date is Wednesday 29 May if you order before 16:00 Wednesday 22 May. This information is valid for up to 4 PC

Available Quantities:

In 11 days:

4 PC

Description:

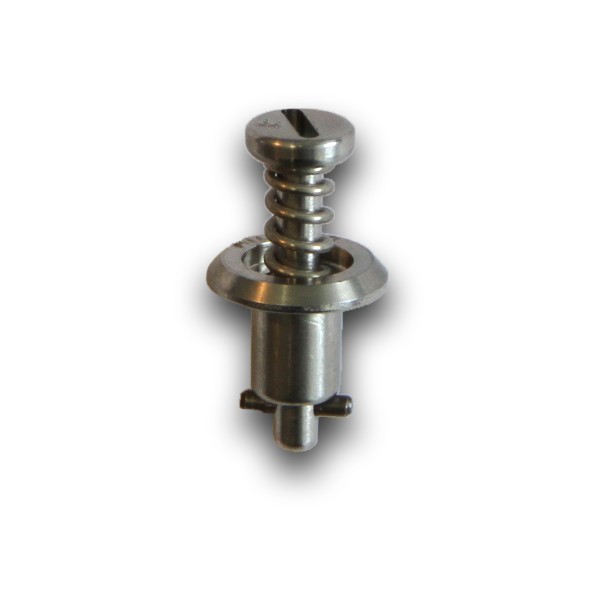

Stainless Steel Slotted Camloc Fastener Stud 2600-7S

2600 STUD LENGTH SELECTION
Total material thickness G consists of the thickness of all materials to be fastened. This must include the thickness of the material P to which the stud assembly is attached, the material F to which the receptacle is attached plus gaskets (if used) and allowance for paint or other protective finishes. If the total thickness is near the upper limit of the stud grip range, the next longer stud should be used. This will still maintain positive locking of the fastener under vibration.

P (panel thickness)..................... .062
F (frame thickness................... + .062
GRIP (total thickness).............. = .124

STUD SELECTION TABLE Using 212-12 Receptacle
Total Grip Thickness	Use 2600
.020-.059	2600-1
.060-.089	2600-2
.090-.119	2600-3
.120-.149	2600-4
.150-.179	2600-5
.180-.209	2600-6
.210-.239	2600-7
.240-.269	2600-8
.270-.299	2600-9
.300-.329	2600-10
.330-359	2600-11
.360-389	2600-12
.390-.419	2600-13
.420-.449	2600-14



2600, 2700 SERIES RETAINING WASHER Retaining washers are required for studs of -5 length or greater. Use split washer 2600- SW2 where it is desirable to have the stud fall away for minimum internal projection. Use internal tooth washer 2600-LW where it is desirable to retain the stud assembly rigidly.

Unit	PC
Hazardous	No
Oversize	No
Weight	0.001 kg
