| Type | Class 1 Mode S Level 2 els |
| Certification | TSO C112D, C166B and ETSO C112C, C166B |
| Compliance | DO-160G, DO-181E, DO-260B Class B1S, DO-178B Level B, DO-254 Level C |
| Supply Voltage (DC) | 11 - 33 V |
| Typical Current Consumption (at 14V) | Idle: 0.22 A, Active: 0.45 A |
| Nominal Transmitter Power | 240 W at connector |
| Operating Temperature | -25 to +70 |
| Cooling Requirement | No fan required |
| Weight | 1.35 kg |
| Dimensions | H 43mm (1.7") |
Search
Categories
Airframe Parts
Avionics
Batteries
Books & Videos
Charts
Composite Materials
Covering Supplies
Electrical
ELTs
Engine Parts
Flight Training
Flight Planning
Gifts
GPS
Hardware
Headsets
Instruments
Landing Gear
Metals & Plastics
Pilot Supplies
Radios
Tires & Tubes
Tools
Wood Products
Kits & Plans
FBO Supplies
Liqui Moly AERO
Catalogs
Avionics
Batteries
Books & Videos
Charts
Composite Materials
Covering Supplies
Electrical
ELTs
Engine Parts
Flight Training
Flight Planning
Gifts
GPS
Hardware
Headsets
Instruments
Landing Gear
Metals & Plastics
Pilot Supplies
Radios
Tires & Tubes
Tools
Wood Products
Kits & Plans
FBO Supplies
Liqui Moly AERO
Catalogs

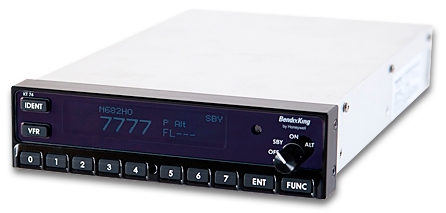

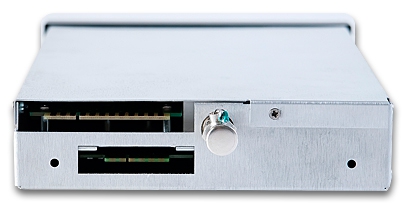

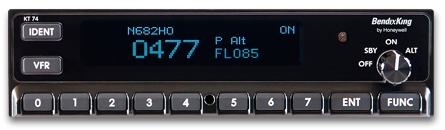

Bendix King Kt 74 Ads B Mode Small Transponder
| Part number: | 11-12038 |
Description:
KT 74 ADVANTAGE
- Retrofit - 'plug and play' installation
- Low-cost solution that will offset future costs
- Low power consumption
- ETSO and TSO approved Mode S
- Accurate readings with updates every few seconds
- More efficient routing and better situational awareness
- Meets ADS-B 2020 requirements*
- ADS-B will result in better communication between pilots and air traffic controllers for more efficient routing and resource management
- Anyone who flies a Mode C or Mode S transponder will need to be equipped with ADS-B "Out" by 2020
- Radar controls can be 12 seconds out of date
- ADS-B "Out" means you're broadcasting your position information to ground stations and other aircrafts
Specifications:
Q+A:
Can the KT-74 be operated in mode C if desired?
We are not aware of the ability for mode selection between C and S on this transponder.
Is the KT 74 a plug and play replacement for the KT 79?
No it is not as the KT 74 is only a slide in replacement for the KT 76A/C and KT 78A model transponders.
Will the KT 74 display TIS-B traffic on a Garmin 430W. As the Garmin GTX 330 does?
Garmin is working with Trig (maker of the KT-74) on the protocol for this but nothing is in place yet for traffic to display on the Garmin GPS/NAV/COM units.
What are the traffic display options and requirements for the KT-74 in the cockpit?
Right now it will be a Bendix/King display unit as we do not have confirmation on any other display device.
| Unit | EA |
| Hazardous | No |
| Oversize | No |
| Weight | 1.678 kg |
| Manufacturer | |
| Manufacturer P/N | |
| GTIN | |
| Core Charge | Yes (add to cart to see price) |
| 110V device | Yes |
