Aircraft Wingtip Nav Light 5W-A-1512 from Aircraft Spruce Europe

Aircraft Wingtip Nav Light 5W-A-1512

Part number:

11-11374

80.66 EUR

incl. 19% VAT, excl. shipping

Expected shipping date is Wednesday 06 August if you order before 16:00 Wednesday 30 July. This information is valid for up to 10 EA

Available Quantities:

In 11 days:

10 EA

Description:

Note: For Experimental aircraft use only. Not FAA/PMA Approved.

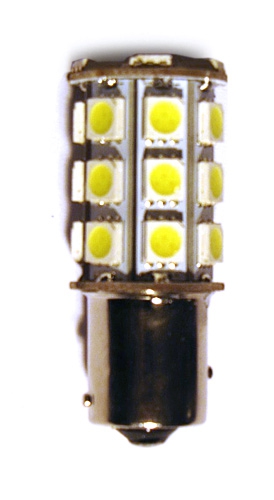

NavStrobe Aircraft Wingtip Nav Light 5W-A-1512

Rapco Equivalent: 1512,1524,7079B-12,7079B-24,7512-12,7512-24

Emitter Type: SMD 5050

Total Emitters: 27
Power: 5W
Color BIN: White

Rated Voltage: 8-30VDC

Draws <400ma @ 14.2VDC
Luminous Flux: 3060LM (0 degrees), 745LM (90 degrees)
Color Temperature: 6000~6500K
2 modes: constant & fast strobe

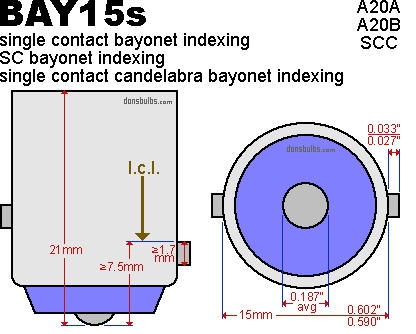

Base Type: BAY15s = Single contact with offset pins. (A-1512)
Application: Wintip Navigation Light replacement.
Contains 1 light bulb per pack

Dimensions: 1.9 in x 0.7 in (49.0 mm x 1.8 cm)
Weight: 0.32 oz (9 g)

Turn on first: Constant lighting / Turn on second time <3s: Fast Strobe. Switch between modes in fog/cloud etc

Application Info:

NavStrobe Wingtip Bulbs: Will replace the following commonly installed bulbs: W1290-14, W1290-28, T7572-12V, T7572-24V, or any BAY15S base lamp. See "Dimensional Drawing" tab to confirm dimensions will work with currently installed bulb on your aircraft.

by Kurt E. Malerich 10/05/2013
These are at least 50% brighter than the standard Grimes 14v Nav lights and they are a whiter light also. Durability to be determined. I think they rock.

The strobe model is great too. It may give you anti collision light capability if your regular beacon burns out you can switch to the strobe mode on this model. Basically a back up anti collision capability.

Beats the heck out of paying $1200 for a set of LED fixtures and they fit a standard Grimes Nav light fixture.

Q+A

Are these PMA'd or TSO'd?
No, at this time these are not FAA Approved for use in certified aircraft. A 337 field approval would be necessary for installation.

What other item do I need to install this strobe light in the wing tip?
Please note that this is just a replacement bulb, not a strobe system. It is a direct plug-n-play replacement for the original Grimes A-1512 bulb, and therefore no other item is required to replace it.

You displayed the dimensions of the metal base. I need the diameter and length of the bulb. Do you have it?
Yes, the length is approximately 1-15/16 inches from bottom of base to tip of bulb. The diameter of the bulb is approximately 3/4".

Unit	EA
Hazardous	No
Oversize	No
Weight	0.145 kg
Manufacturer
Manufacturer P/N
GTIN
Core Charge	Yes (add to cart to see price)
110V device	Yes
