TL EFIS INTEGRA TL-6524

EFIS INTEGRA TL-6524

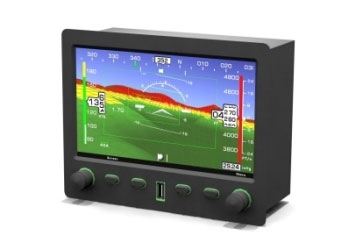

EFISIntegra TL-6524 is a multifunctional flight monitoring system integrating all primary flight instruments (Altimeter, Vertical Speed Indicator, Air Speed Indicator, Compass, Accelerometer, Chronometers, Turn & Bank Indicators, Angle Of Attack Indicators, IAT, OAT etc.). The EFIS Integra also combines navigation (HSI, CDI with connection to the popular Garmin SL-30) and 3-D terrain for use worldwide.

The wide viewing angles, brilliant colour and direct sunlight readability of the display will give you a new dimension in EFIS instrumentation. Proven, state of the art technology and components will provide you with comfortable, user-friendly control. The Integra controls are fully ambidextrous and provide functions that have previously only been dreamt of - listening to your favourite music after inserting your flash drive into the front panel USB port, 3-D visualization of terrain, integrated 3-axis autopilot, direct voice warnings into your headphones, etc.

Features

• Voltage: 10.0 to 32.0 Volts
• Backlights internal or external: 5V, 12V or 24V
• Current consumption: 500 to 750 mA @ 14 Volts
• Maximal voltage and signal current: 30 Volts, 1 Ampere
• Measurement: +/-1%
• Operating: -20°C to 70°C (-4°F to 158°F) temperature range
• Relative humidity: 95% without condensation
• Load: +/-20 g
• Vibration: 1 to 200 Hz
• Weight: 750 grams (0,55 lbs)
• Dimensions: 192x149x90 mm (7.550x5.860x3.540 inch)

Benefits

• Option to select required language - English by default
• Option to simply update firmware by inserting a Flash drive containing the newest firmware version
• Option of pre-setup of glass cockpit according to the particular aircraft type saved in a Flash drive
• Shows a graphical previous flight directly on the glass cockpit display
• Shows a checklist including the voice output
• Shows a flight logbook including name of pilot (student and instructor), date, time and position of take-off and landing
• Download the history of previous flights to a Flash drive or directly to a PC
