SIGMATEK 3-1/8" ELEC ATTITUDE GYRO 5000EG 14V
| Part number: | 10-02755 |
Description:
| Model | Inclinometer | Lighted | Panel Tilt | Voltage | Part Number |
| 1U670-001-1 | Yes | Yes | 0 | 28 | 10-02748 |
| 1U670-002-2 | Yes | Yes | 0 | 14 | 10-02749 |
| 1U670-003-3 | No | Yes | 0 | 28 | 10-02750 |
| 1U670-004-4 | No | Yes | 0 | 14 | 10-02751 |
| 1U670-005-5 | Yes | No | 0 | 28 | 10-02752 |
| 1U670-006-6 | Yes | No | 0 | 14 | 10-02754 |
| 1U670-007-7 | No | No | 0 | 28 | 10-02753 |
| 1U670-008-8 | No | No | 0 | 14 | 10-02755 |
| 1U670-002-9 | Yes | Yes | 8 | 14 | 10-04903 |
| 1U670-001-10 | Yes | Yes | 8 | 28 | 10-04896 |
| 1U670-001-15 | Yes | Yes | 7-1/2 | 28 | 10-04897 |
| 1U670-001-19 | Yes | Yes | 11 | 28 | 10-04898 |
| 1U670-003-11 | No | Yes | 4 | 28 | 10-04899 |
| 1U670-003-12 | No | Yes | 8 | 28 | 10-04901 |
| 1U670-007-10 | No | Yes | 10 | 28 | 10-04902 |

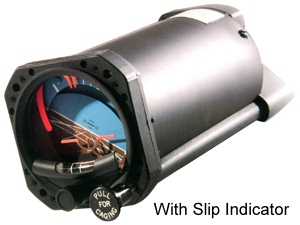

The 5000EG gyro is based on our air-driven 5000B model, whose proven reliability has made it the industry standard for many years. There are two models available: 14 and 28 VDC. The rotor is precisely machined from a heavy-metal tungsten alloy, which has a higher mass than brass, contributing to the instruments demonstrated stability. The electric motor is driven by a built-in power inverter, and has an integrated air-erection mechanism. A warning flag is deployed upon loss of primary power. During acrobatic flights or short stops, the gyros mechanism can be caged whenever the knob is pulled.
This instrument is FAA certified, and can be used to replace the aircrafts turn coordinator when equipped with an inclinometer.
The electric gyro can replace most air driven gyros with the major difference being its electric power source and the layout and colors of the display.
NOTE: Lighted instruments do not include lamp trays or connector, please see accessories to purchase separately.
- Panel Tilt Inclination: 0 degrees
- DISPLAY: Blue over Brown
- TILT: 0 Degree (other tilts are special order)
- Warning Flag: Include
- Panel mount: Standard 3-1/8 inch round cutout, rear mount
- Length: 8.1 inches maximum
- Weight: 2.6 lbs. maximum, C/G 3.25 inches from mounting face
- Input Power:14Vdc input-1500 mA starting & 1400 mA running; 28Vdc input-600 mA starting & 550 mA running

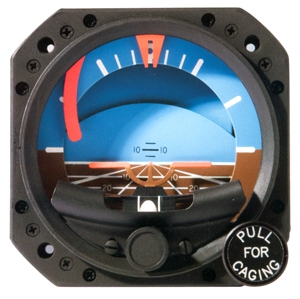

- Dial Presentation: Fixed pointer, rotating dial, with symbolic airplane
- Operating Temperature Range: -30°C to +50°C, -22°F to +122°F
- Certification: FAA TSO-C4c
- Limited Warranty: 12 Months from date installed / 6 months shelf life.
- Height: 3.38"
- Width: 3.38"
- Depth: 8.09"
- Weight: 2.6 Lbs. Max
- Markings: Matte White
- Finish: Dull Black
Q+A
Which Sigma-Tek electric attitude gyros will fit my Piper Navajo PA31-310? It is 28V system and I would like a lit version.
P/N 10-02750 is for a zero degree panel tilt, no inclinometer, lighted for a 24 volt aircraft. Please confirm your panel tilt before you order as we do not know and cannot change after we ship.
| Unit | EA |
| Hazardous | No |
| Oversize | No |
| Weight | 1.701 kg |
| Core Charge | Yes (add to cart to see price) |
