RC ALLEN A1050 2" ELC TC 28

This series of 2" Turn and Slip indicators are hermetically sealed, have direct reading turn and bank, are filtered against radio noise and have mechanical governor speed control.

Fits standard 2.25" panel cutout.
Dimensions:
Length: 5-1/4" Width: 2-3/8"
Height: 2-3/8" Weight: 1.25 lbs.

A1050 (Refer to Image #1)

28 Volt, 4 minute turn, white ball, Yellow dial Markings.

Connector Pin Out:
A: 28 VDC
B: GROUND
C:SPARE

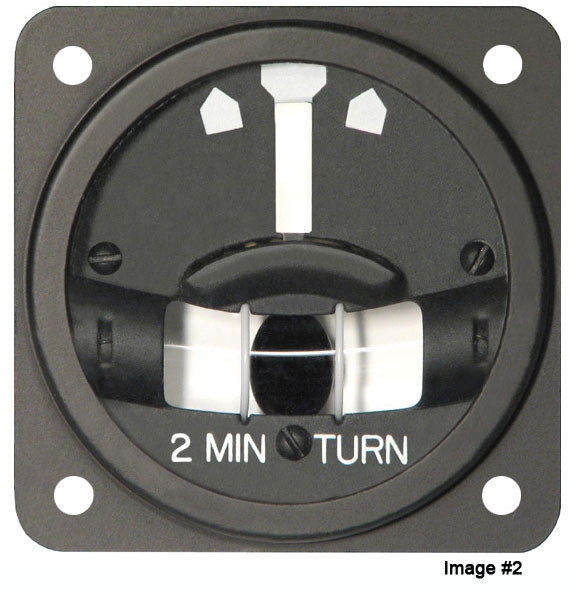

A1050-02 (Refer to Image #2)

14 Volt, 2 minute turn, black ball, White dial Markings.

Connector Pin Out:
A: 14 VDC
B: GROUND
C:SPARE

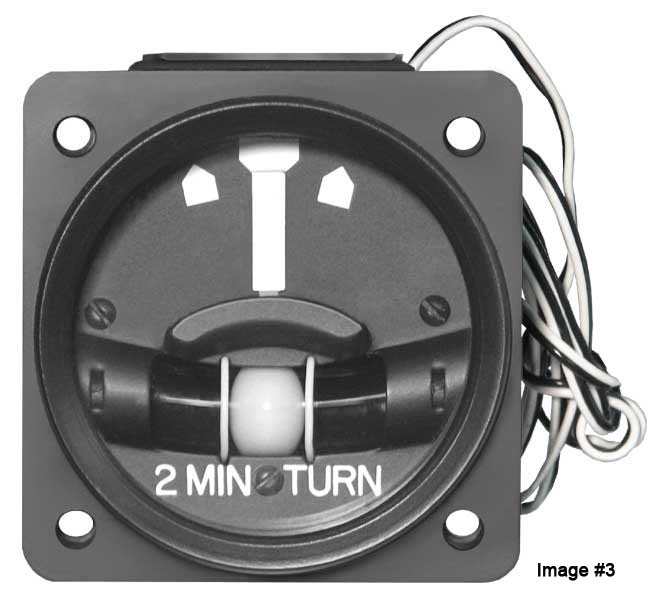

A1050-03 (Refer to Image #3)

14 Volt, 2 minute turn, white ball, White dial Markings. 5, 14 or 28 Volt Lighting

Connector Pin Out:
A: 14 VDC
B: GROUND
C:SPARE
