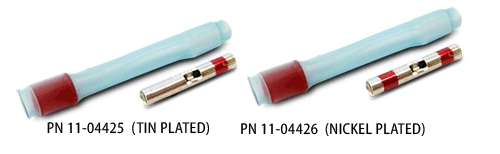

RAYCHEM BUTT SPLICE RED

Part number:

11-04425

2.39 EUR

excl. VAT, excl. shipping

Available Quantities:

unknown

Description:

Size: 26-20 AWG (Red)
Model: Tin Plated

Heat-Shrinkable crimp butt splices completely insulate and protect electrical connections from water, condensation, salt and corrosion. Provides strain relief and protects against wire pull-out and vibration in the most rugged environments. Qualified to MIL-S-81824/1.

Price and sold individually.

Specifications

Blue
AWG: 20-16 -- I.D. dimensions
(mm/in) Crimp barrel size range
779-2680(CMA) 0.39-1.34(mm)
Side 1 (Sealing Insert: 2.79(.110) / Max. no. of wires: 2)
Side 2 (Sealing Insert: 2.79(.110) / Max. no. of wires: 2)

Red
AWG: 26-20 -- I.D. dimensions
(mm/in)Crimp barrel size range
1900-6755(CMA) 0.95-3.37(mm)
Side 1 (Sealing Insert: 4.32(.170) / Max. no. of wires: 2)
Side 2 (Sealing Insert: 4.32(.170) / Max. no. of wires: 2)

Yellow
AWG: 16-12 -- I.D. dimensions
(mm/in) Crimp barrel size range
1900-6755(CMA) 0.95-3.37(mm)
Side 1 (Sealing Insert: 4.32(.170) / Max. no. of wires: 2)
Side 2 (Sealing Insert: 4.32(.170) / Max. no. of wires: 2)

Unit	PC
Hazardous	No
Oversize	No
Weight	0.001 kg
