MICHEL TKM MX 385 NAV/COM 28V

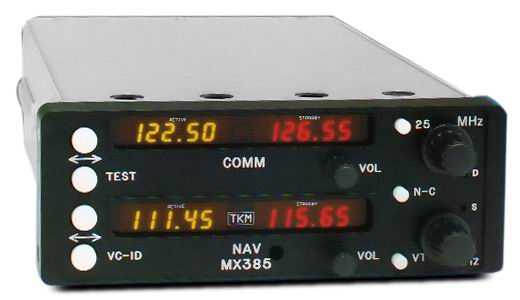

The MX 385 is designed to be electrically and mechanically interchangeable with the RT 385 and RT 485. The MX 385 is available with the black faceplate as shown above used with most Cessna panels.

Note: 8130 forms not available.

• 760 Channel COM
• 200 Channel NAV
• Digital display with active/standby frequency with "Flip-Flop"
• 100 Memory channels
• 8 Watt Min
• Noise Adaptive Squelch
• 28 Vdc
• Two Year Factory Warranty

• Frequency range: Comm - 760 channels 118.000 to 136.975 Mhz
• Nav: - 200 channels 108.00 to 117.95 Mhz
• Preselect channel storage capacity: - 100
• Frequency stability +/- .003 %, -20C to 50C
• Transmitter power: 8 watts min.
• Modulation: 85% minimum with limiting at 90%
• Sidestone: Adjustable to 20 mw into 500 ohms
• Squelch: Noise adaptive squelch with manual override
• Audio output: 5 watts into a 4 ohm speaker; 40 mw into 500 ohm headphones
• Demod output VOR: adjustable from .25 to .75 vrms
• Weight: 4 lbs.
• Size: 6.7" wide x 2.5" high x 10.4" mounting depth
• Tso: C34e, C36e, C37d, C38d, C40c
