Cleveland

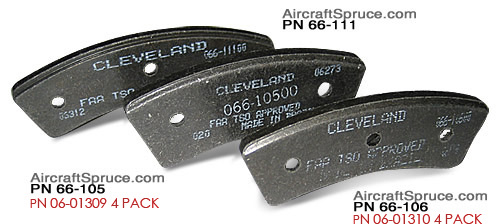

Landing-Gear_Brake-Linings_Cleveland

Cleveland

For a number of years Cleveland offered standard organic & heavy-duty asbestos brake linings for their wheels and brakes.

In January 1988 the two types of linings were discontinued and a single, improved brake lining was introduced. The prices are higher than the older types of linings but performance and durability are greatly improved. Replace worn brake linings with new original Cleveland parts for positive braking action. Advise make, year and model number of aircraft, and order number of linings you require plus required number of rivets.

Most light aircraft take 2 linings per wheel. See tool section for economical rivet tool. All brake linings include rivets.

Advise aircraft make, model and serial number to assure
that correct brake lining part number is furnished.
Extra rivets, P/N 105-2, for all models listed in table .05 each

ORDER BY NEW CLEVELAND PART NUMBER.

Aircraft Make & Model Old Cleveland P/N No. Req. New Cleveland P/N

Buy

AEROTEK
Pitts S-1, S-2A 66-2 2 66-106
4 Pack Kit of
66-106
BEECH
Musketeer 66-55 2 66-105
4 Pack Kit of
66-105
Sierra Sport Sundowner B-19; C-23, 24R 66-55 2 66-105
4 Pack Kit of
66-105
Debonair CD-1 thru CD-387 66-4 2 66-111
4 Pack Kit of
66-111
Debonair B-33 66-2 2 66-106
4 Pack Kit of
66-106
BELLANCA
Citabria, Champ 66-2 2 66-106
4 Pack Kit of
66-106
Scout 66-3 1 66-106
4 Pack Kit of
66-106
Decathalon, Scout 8GCBC 66-2 2 66-106
4 Pack Kit of
66-106
Viking, Aries 250 66-55 2 66-105
4 Pack Kit of
66-105
Skipper 66-71 2 66-112
CESSNA
150A, B, C, D, E 66-2 2 66-106
4 Pack Kit of
66-106
66-56 2 66-106
4 Pack Kit of
66-106
150F, G, H, J, K, 152, F-152, FA-152 66-55 2 66-105
4 Pack Kit of
66-105
Skyhawk 172, Cardinal 177 All 66-55 2 66-105
4 Pack Kit of
66-105
Skywagon 180 66-55 4 66-105
Skylane 182 H, J, K, L, M, N 66-55 2 66-105
4 Pack Kit of
66-105
185A, B 66-2 2 66-106
4 Pack Kit of
66-106
185C, D, E 66-55 2 66-105
4 Pack Kit of
66-105
185 with crosswind gear 66-2 2 66-106
AGWagon 66-55 4 66-105
Stationair-6 205, 205A 66-2 2 66-106
4 Pack Kit of
66-106
Stationair-6 205, 205A (s/n 205-0481 & up) 66-55 4 66-105
206, U206A, D, E & Turbo models 66-55 4 66-105
207, T207 66-55 4 66-105
210C 66-4 2 66-111
210, P210, T210, 210N, P210N 66-55 4 66-105
303, T303 66-44 4 66-44
305A, B, C, D, E, F 66-55 4 66-105
310, 335 66-33 6 66-33
Skymaster 336 66-2 2 66-106
4 Pack Kit of
66-106
All Cessnas using Cessna/McCauley Brakes B-30026 2
  • 150,152,A150 (1971 to 1973),F150,F152 (1973 to 1976)FA152 (Reims)
  • 172,R172 (1971 to 1973),F172,FR172,172RG
  • 177,177RG,F177RG (1975 thru 1977)
  • 180 Series Skywagon
  • 182 Series, F182 (Reims)(1976 thru 1978), T182 (1981 and on)
  • 185 Series Skywagon (1973 to 1974)
  • 206 Series (Aircraft equipped with McCauley)
  • 210 Series (Aircraft equipped with McCauley)
B-30026 2 66-109
CIRRUS

SR-20

(Click image to enlarge view)
066-14100 4 66-141
GRUMMAN
AA-1, A, B, AA-5, AA-5A, AA-5B, Tiger, TR-2 66-55 2 66-105
4 Pack Kit of
66-105
AG-CAT 66-3 1 66-106
4 Pack Kit of
66-106
66-56 2 66-106
4 Pack Kit of 66-106
G-154 66-2 2 66-106
4 Pack Kit of
66-106
Widgeon G44, G44A, Scan Type 30 66-11700 2 -

Aircraft Make & Model Old Cleveland P/N No. Req. New Cleveland P/N

Buy

MAULE
Jetasen/Rocket, Lunar/Rocket 66-55 2 66-105
4 Pack Kit of
66-105
MOONEY
Most M20, A, B, D, E 66-4 2 66-111
PILATUS BRITTEN-NORMAN LTD.
Defender 4000 66-44 6 66-44
PIPER
Colt PA22-108
66-2
2 66-106
4 Pack Kit of
66-106
66-56
2 66-106
4 Pack Kit of
66-106
Apache PA-23-150, 160
66-2
2 66-106
4 Pack Kit of
66-106
66-56
2 66-106
4 Pack Kit of
66-106
Apache/Aztec PA-23-235, 250 Series
66-2
4 66-106
66-3
4 66-106
Comanche PA-24-180, 250, 260
66-2
2 66-106
4 Pack Kit of
66-106
Pawnee C PA-25
66-2
2 66-106
4 Pack Kit of
66-106
Cherokee/Cruiser PA-28-140
66-2
2 66-106
4 Pack Kit of
66-106
PA-28-140 s/n 28-20521 & up
66-55
2 66-105
4 Pack Kit of
66-105
Cherokee PA-28-150
66-2
2 66-106
4 Pack Kit of
66-106
Cherokee PA-28-150 s/n 28-1761 & up
66-55
2 66-105
4 Pack Kit of
66-105
Cherokee Warrier PA-28-151
66-55
2 66-105
4 Pack Kit of
66-105
Cherokee PA-28-160
66-2
2 66-106
4 Pack Kit of
66-106
Cherokee/Warrier II PA-28-161
66-55
2 66-105
4 Pack Kit of
66-105
Cherokee/Archer PA-28-180
66-2
2 66-106
4 Pack Kit of
66-106
Cherokee/Archer PA-28-160
66-55
2 66-105
4 Pack Kit of
66-105
Cherokee/Pathfinder PA-28-181, PA-28-236
66-55
2 66-105
4 Pack Kit of
66-105
PA-28R-180, PA-28-200
66-2
2 66-106
4 Pack Kit of
66-106
PA-28R-180 s/n 28R-7130006 & up
66-55
2 66-105
4 Pack Kit of
66-105
PA-28-200 s/n 28R-7135110 & up
66-55
2 66-105
4 Pack Kit of
66-105
PA-28R-201T, 201, PA-28RT-201, 201T
66-55
2 66-105
4 Pack Kit of
66-105
Early PA-28-235
66-56
2 66-105
4 Pack Kit of
66-105
Early PA-28R-180, 200
66-56
2 66-105
4 Pack Kit of
66-105
Twin Comanche PA-30
66-19
2 66-62
Navajo B, PA31-300, 310, Turbo Navajo
66-33
6 66-33
Chieftain, PA-31-350
66-33
6 66-33
Cherokee/Six-260 PA-32-260
66-55
4 66-105
PA-32-300 s/n 32-40000 thru 7200029
66-55
4 66-105
PA-32R-300, 32RT-300
66-55
4 66-105
PA-38-112 (6" Wheels)
66-71
2 66-112
PA-38-112 (5" Wheels)
66-51
2 66-106
4 Pack Kit of
66-106
PA-39
66-19
1 66-62
PA-39, PA-39-1 & up
66-3
1 66-106
PA-44-180
66-55
4 66-105
RAYTHEON
C55, TE-1 AND ON 66-44 4 66-44
D55 TE-452 AND ON
E55, TE-768 AND ON
TAYLORCRAFT
Sportsman 100 66-55 2 66-105
4 Pack Kit of
66-105
*Advise aircraft make, model and serial number to assure that correct brake lining part number is furnished.
** Extra rivets, P/N 105-2, for all models listed in table .05 each


= Available today
= Available in 3-10 days
= Available in 9 days
= Unknown (3 weeks or more)
CLEV BRAKE LINING # 66-11266-112CLEV BRAKE LINING # 66-11244.99 EURDelivery in 9 days
CLEV BRAKE LINING # 66-10866-108CLEV BRAKE LINING # 66-10833.08 EURDelivery today
CLEV BRAKE LINING # 66-11166-111CLEV BRAKE LINING # 66-11141.62 EURDelivery in 9 days
CLEV BRAKE LINING 66-105 4PK06-01309CLEV BRAKE LINING 66-105 4PK84.22 EURDelivery in 9 days
CLEVELAND BRAKE LINING 066-1170006-01502CLEVELAND BRAKE LINING 066-11700118.09 EURplease call
CLEV BRAKE LINING 066-3002666-109CLEV BRAKE LINING 066-3002633.17 EURDelivery today
CLEVELAND BRAKE LININGS 66-4466-44CLEVELAND BRAKE LININGS 66-4428.55 EURplease call
CLEVELAND BRAKE LINING 66-10566-105CLEVELAND BRAKE LINING 66-10522.13 EURDelivery in 9 days
CLEV BRAKE LINING 66-106 4PK06-01310CLEV BRAKE LINING 66-106 4PK81.93 EURDelivery in 9 days
CLEVELAND BRAKE LINING 66-6266-62CLEVELAND BRAKE LINING 66-6242.11 EURDelivery today
CLEVELAND BRAKE LINING 66-10666-106CLEVELAND BRAKE LINING 66-10621.70 EURDelivery today
CLEVELAND LINING 066-0330066-33CLEVELAND LINING 066-0330027.57 EURDelivery today
