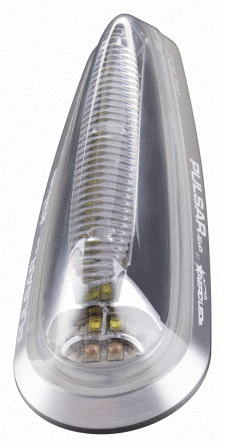

AERO-LEDS AERO PULSAR EXP STROBES

Electrical_LED-Lighting_Strobes_AERO-LEDS-AERO-PULSAR-EXP-STROBES

All LED navigation/position/strobe designed for the wingtips of an aircraft and projects a 180 degree light coverage. ExP does not require an external power supply and will retrofit the mounting footprint of legacy lighting.

Features

• Voltage Range: 9-36VDC
• Current Draw at 12VDC: 1 Amp Avg / 2.5 Amps Peak
• Power Consumption: 13 Watts Avg
• Strobe Power Supply: Built In
• Strobe Synchronization: Built In
• Thermal Protection: Built In
• Position Light: FAR Compliant
• Strobe: FAR Class 1 Equivalent
• LED Count: 16
• Length: 5.63”
• Width: 1.85”
• Depth: 1.3”
• Weight: 4 Oz
• Heat Sink Material: Clear Anodized Aluminum
• Lens Material: Polycarbonate
• Screw Mount: 3x 6-32 Machine Screws
• Rated Life: 50,000 Hours
• Temperature Range: -55C to +70C
