CONCORDE SEALED BATTERY RG-131

Part number: 11-02947

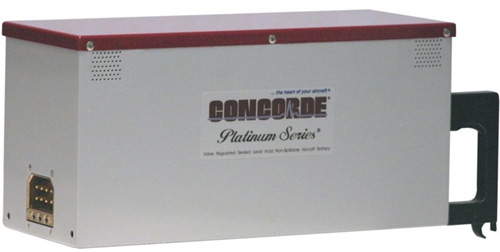

CONCORDE SEALED BATTERY RG-131 from Concorde Battery
3065.58 EUR
excl. VAT, excl. shipping
EA
please call
Available Quantities:
unknown
Description:

The RG-131 is an ARINC rack mountable aircraft battery.

Test Temperature @ 23°C (74°F) = C1 is 12.0 Ah

Test Temperature @ -18°C (0°F) = C1 is 6.5 Ah

Test Temperature @ -30°C (-22°F) = C1 is 4.0 Ah

Avionics Battery for lighting, standby, emergency power. Protects and extends the life of other avionics. Concorde Emergency Batteries float directly on the DC buss with no need for a dedicated charger. This results in a high inrush current which extends battery life with fast recovery time from discharge. With the battery floating directly on the buss, transient spikes in the DC power are absorbed. These batteries are self regulating on charge and will take only the current required to maintain it at full charge.

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • Manufactured with absorbed glass mat separators (AGM)
  • RG® Series batteries ship non-HAZMAT
Battery Type
Voltage
Ampere Hours
Max. Weight
Our P/N
Battery Diagram PDF
RG-131
Emergency
Battery
24
12
31 lbs.
11-02947

Click here to download BATTERY WARRANTY (PDF)
Click here to download FAA-PMA Installation Eligibility List PDF
Click here to download Storage and Boost Charge Recommendations PDF
Click here to download Concorde Battery AS9100 Certificate of Registration

Material Safety Data Sheets (Click on link to download PDF)
Valve Regulated (RG® Series) Lead Acid Batteries
Lead Acid Batteries
Dry Charged Batteries

UnitEA
HazardousNo
OversizeNo
Weight14.515 kg
ManufacturerConcorde Battery
