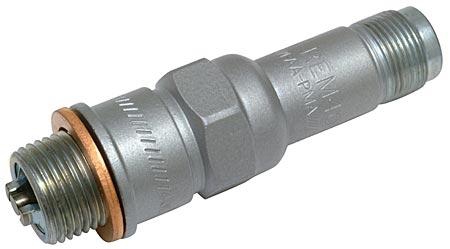

CHAMPION SPARK PLUG REM40E
Part number: | REM40E |
In 1 day: | 11 EA |
In 12 days: | 3614 EA |
All Champion Aviation Spark Plugs are identified by type designations selected by virtue of the plug design as applied to the following Spark Plug Number and Symbol Chart. The symbol is composed of a rating position number together with prefix and suffix numbers to indicate major plug design characteristics.
1. Resistor | None--No Resistor | R--Mil-Spec. Resistor-Erosion protection |
2. Barrel Style | None -- Unshielded | E -- Shielded 5/8"-24 Thread |
H -- Shielded 3/4"-20 Thread (All Weather Plug) | ||
3. Mounting Thread -- Reach -- Hex Size | B-18mm 13/16" / 2.06cm 7/8" / 2.22cm | M--18mm 1/2"/1.27cm 7/8"/2.22cm |
L-14mm 1/2"/1.27cm 13/16/2.06cm | U18mm 1-1/8"/2.85cm 13/16/2.06cm | |
J -- 14mm 3/8"/0.95cm 13/16/2.06cm | ||
4. Heat Rating Position | Low number--cold | High number--hot |
5. Electrode Design | None-Conventional single | E
-- Two prong massive N -- 4 prong massive |
W -- Fine wire (Iridium) | B --2 prong massive, Tangent to Center | |
P--Fine wire (Platinum) |
Download Champion Aerospace Aviation Catalog PDF |
Unit | EA |
Hazardous | No |
Oversize | No |
Weight | 0.119 kg |
Manufacturer | Champion Aerospace |
