CAT-4 DUCTING 1"

Part number: 05-29804
CAT-4 DUCTING 1"
6.25 EUR
excl. VAT, excl. shipping
FT
please call
Available Quantities:
unknown
Oversize
Description:

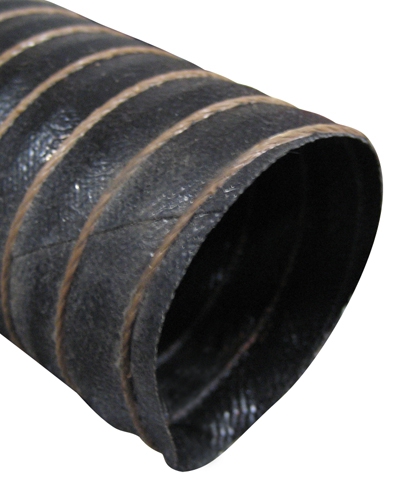

“CAT” - “CAT” type flexible hot or cold air ducting is extremely lightweight and highly flexible. Short lengths can be joined together to form a continuous length. Made of a single ply black neoprene impregnated fiberglass with a spiral copper coated steel wire inside and wrapped with fiberglass cord on the outside. Suitable for conveying fumes and air a temperatures from -65° to over 350°F. Not recommended for handling liquids or highly abrasive materials, or for negative pressure applications.

Sold by the foot.

Features: Extremely lightweight and highly flexible. Short lengths can be joined together to form a continuous length.

Diameters not listed are available as a special order in full lengths only. Order CAT 2-3/4" diameter for Whisperflow air vents. Full factory lengths are up to 13 ft. Varies by warehouse. For lengths over 12 ft, contact sales to confirm availability.

Other Ducting Types

  • “SCAT” - “SCAT” type ducting has the same type construction as “CAT” except with red silicone rubber impregnation. For use in conducting extremely cold or hot air with temperatures from -65° to over 550°F. Not recommended for negative pressure applications.

  • “CEET” - “CEET” type ducting has two plies of neoprene-impregnated fiberglass, similar to CAT except wire between plies. For use in hot or cold air applications and for conveying fumes at temperatures ranging from -65° to over 350°F. Not recommended for handling liquids or highly abrasive materials, or for negative pressure applications.

  • “SCEET” - “SCEET” type ducting has two plies of silicone rubber-im pregnated fiber glass, similar to SCAT except wire be tween plies. Ideal for use in conducting extremely cold or hot air at temperatures from -80° to over 550°F, and for conveying fumes. Not recommended for handling liquids or highly abrasive materials, or for negative pressure applications.


    Q+A

    Hello, If I purchase 3 foot of CAT Ducting will it come in 3 individual one foots or will it come in one 3 foot length? Thanks Adrian
    An order for 3 feet will be delivered at 3 continuous feet, unless noted in special instructions to cut into 3, 1 foot lengths.

    Is the dash number of the CAT hose in feet? In other words, is a -24, 24 feet long?
    No, the dash number is the extension used after CAT to complete the industry standard part number. For example, the part number would be CAT-2A, CAT-3, etc. All CAT ducting is priced and sold per foot, so to get 24 feet, order quantity 24.
UnitFT
HazardousNo
OversizeYes
Weight0.138 kg
