BYCAN BLUE ANGEL P/S US CESSNA

DUAL VOLTAGE AIRCRAFT GROUND
POWER & BATTERY CHARGER UNIT
PROVIDES 50AMPS AT 14 & 28 VOLTS DC

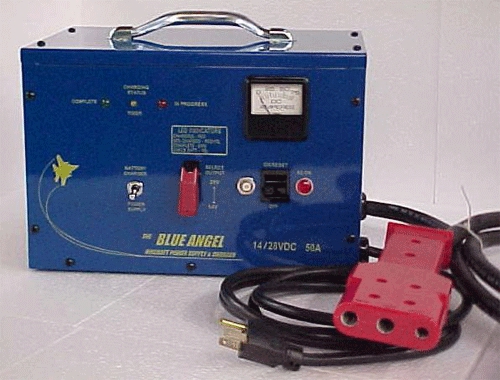

The Bycan BA-14/2850 Aircraft Ramp Power Supply and Battery Charger is a multi- purpose aircraft flight line service and maintenance tool. The unit has a filtered 14 & 28 volt DC power supply with up to 50 amperes capability for tests of aircraft electrical systems and a secondary mode for recharging run-down batteries.

This ramp or hangar accessory is an absolute must for avionics service, gear and flap actuator exercising and other electrical system service.

The BA-14/2850 plugs directly into the aircraft APU connector and is tied to the electrical system when the master switch is activated. Selection of output voltage is by a front panel switch which is protected by a switch guard. Closing the guard forces the switch to the 14 volt position. The battery charging mode is selectable by a front panel switch. The charging process is fully automatic. When the charge is in progress a red LED is illuminated. This is replaced by a green LED when the aircraft battery is fully charged. The on/off switch on the unit also resets the unit.

• 50 amperes filtered 14 & 28 volt supply
• Aircraft APU connectors furnished
• Operates from 115 VAC, 60 Hz
• AC circuit breaker included
• 8 foot DC cable furnished
• Weighs only 46 pounds. “Portable”
• Ferro-resonant regulated supply
• One year warranty
• Extensive testing by FBO's
