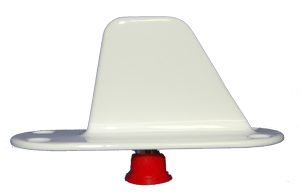

AERO ANTENNA AT130-6 BLADE

Avionics_Antennas_Transponder_AERO-ANTENNA-AT130-6-BLADE

This lightweight, high speed, all metal 960 to 1220 MHz Antenna is suitable for installation on all piston, turboprop, and turbine airframes including Air Transport Category aircraft.

• DC grounded
• Omni directional patterns

• 1dB forward gain enhancement


It is ideal for aircraft with Mode S transponders and is approved under TSO C66c and ETSO 2C66b.

Specifications

• Frequency: 960-1220 MHz
• Lightning Protection: DC grounded
• Pattern: Omni-directional, minimum no more than 2.5 db below a matched
• Gain: Vertically polarized 1/4 wave stub for conic angle of 00 to 300 above ground plane.
• Impedance: 50 ohms
• VSWR: 1.8:1 max @ 960-1220 MHz
• RF power: 250 watts, pulse 3 Kw
• Connector: Type C, female material a380 aluminum alloy casting
• Finish: Polyurethane enamal, white skydrol resistant
• Weight: 4 oz. Max.
• Design To: Do-160d, mil-dtf-810c, mil-e-5400, mil-a-9094
• Operating Temp: -550c to +850c
• Ground Survival Temp: -550c to +850c
• Altitude: 55,000’
• TSO: C66c
• ETSO: 2C66b
• Standard Part Number: AT130-6
