AVEO RED SW TOP AVRR-RT BM

Part number: 11-06641
AVEO RED SW TOP AVRR-RT BM from Aveo Engineering
7.66 EUR
excl. VAT, excl. shipping
EA
please call
Available Quantities:
unknown
Description:

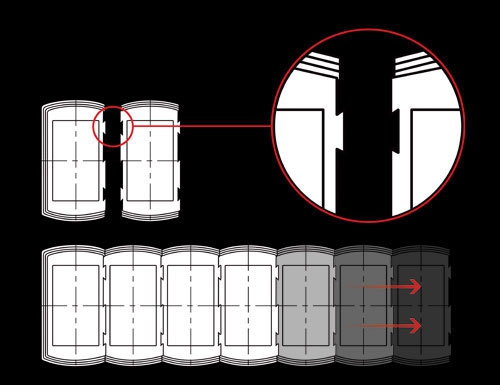

The exclusive RockRack™ system from Aveo permits the pilot to build up his cockpit rockers to meet his particular needs. With numerous standard aviation-specific icons to pick from, the pilot can make just one simple cutout for whatever number of rockers he wants, starting with a single rocker up to a complete lineup, due to the unique locking "dovetail" stacking system of the switch housings as shown in this diagram:


The Aveo RockRack™ LED custom-icon rockers switches now feature an expanded set of icons, more than 50, and a new OFF position bar stripe indicator at the bottom of the switch cover. Pre-Packed in a new 10-pack configuration are available.
  • Aviation Icons backlit with LEDs
  • More than 50 icons
  • Only one cutout needed for any stack size
  • Integrated resistors
  • Quick-Connect Connectors up to 10 terminals
  • Ultrasonic welding seals
  • Removable actuator
  • 150,000 cycle mechanical life
  • 12 volt or 24 volt
  • 10A@24VDC

  • 2 Volts or 24 Volts
  • 150,000 cycles minimum mechanical life
  • Water & petroleum resistant according to EN61058-1
  • Tear resistant according to NF ISO 2409 Class 0
  • UV resistant according to ISO 4892-2
  • Gold plated contacts
  • LED consumption : 20mA@nominal voltage at 25º C
  • Meets or Exceeds All FAA & EASA Requirements



UnitEA
HazardousNo
OversizeNo
Weight0.023 kg
ManufacturerAveo Engineering
