AVEO ICE & HEAT SWITCH TOPS 10

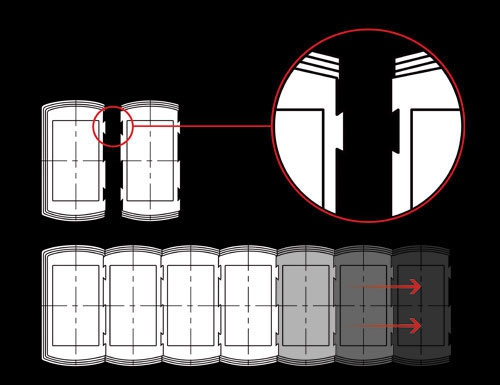

The exclusive RockRack™ system from Aveo permits the pilot to build up his cockpit rockers to meet his particular needs. With numerous standard aviation-specific icons to pick from, the pilot can make just one simple cutout for whatever number of rockers he wants, starting with a single rocker up to a complete lineup, due to the unique locking "dovetail" stacking system of the switch housings as shown in this diagram:

• Aviation Icons backlit with LEDs

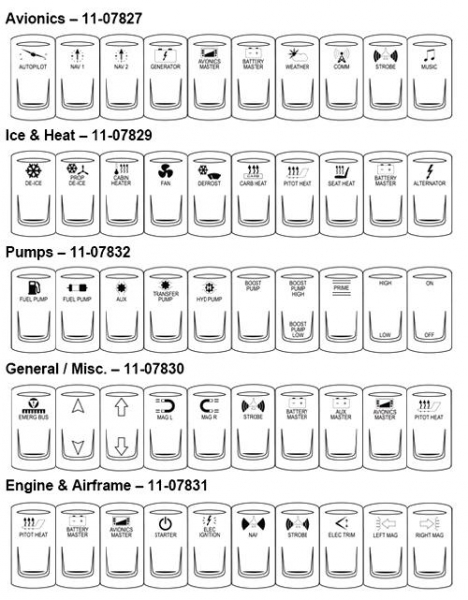

• More than 50 icons

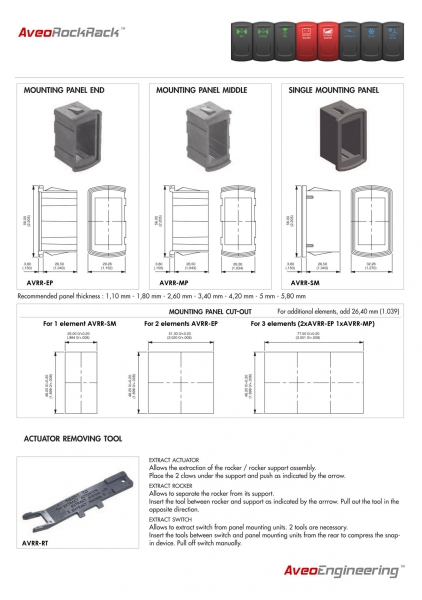

• Only one cutout needed for any stack size
• Integrated resistors
• Quick-Connect Connectors up to 10 terminals
• Ultrasonic welding seals
• Removable actuator
• 150,000 cycle mechanical life
• 12 volt or 24 volt
• 10A@24VDC

• 2 Volts or 24 Volts
• 150,000 cycles minimum mechanical life
• Water & petroleum resistant according to EN61058-1
• Tear resistant according to NF ISO 2409 Class 0
• UV resistant according to ISO 4892-2
• Gold plated contacts
• LED consumption : 20mA@nominal voltage at 25º C
• Meets or Exceeds All FAA & EASA Requirements

• Connection Diagram (PDF)
