AURORA BEARINGS MALE

Airframe-Parts_Bearings_Aurora_AURORA-BEARINGS-MALE

GMM-M & GMB-M Series Male Rod Ends, General Aviation - Precision

• Body - Carbon steel, protective coated for corrosion resistance.

• Race - Carbon steel,protective coated for corrosion resistance.

• Ball - Alloy steel, heat treated, hard chrome plated(AMS-QQ-C-320 Class 2). Units are traceable and are magnetic particle inspected after assembly.

• Grease Fitting available for all sizes. Units are supplied without grease fittings. When a grease fitting is required, specify by adding suffix "Z" or "F". Ex.: GMM-3MZ-470 = Zerk Type Fitting GMM-3MF-470 = Flush Type Fitting.

• Load ratings apply only to rod ends without grease fittings. For load ratings with fittings, consult our engineering department.

• For rod end bearings which are non-traceable or non-magnetic particle inspected, consult factory.

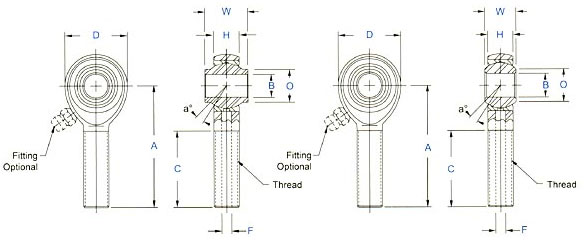

Specification Chart

	= Available in 1 day
	= Available in 3-10 days
	= Available in 13 days
	= Unknown (3 weeks or more)

	05-01635	Gmm-3M-470 Aurora Bearing		29.75 EUR
	M34-14M	M34-14M Magnaflux Bearing		90.98 EUR
	05-01636	Gmb-3M-470 Aurora Bearing		39.20 EUR
	05-01637	Gmm-3M-570 Aurora Bearing		36.76 EUR
	05-01638	Gmb-3M-570 Aurora Bearing		79.11 EUR
	05-01639	Gmm-3M-670 Aurora Bearing		38.01 EUR
	MD36-14M	Rod End Bearing MD36-14M Rem-3-7M		109.79 EUR
	05-01640	Gmb-3M-670 Aurora Bearing		48.39 EUR
	05-01641	Gmm-3M-680 Aurora Bearing		40.71 EUR
	05-01643	Gmm-4M-470 Aurora Bearing		49.97 EUR
	05-01644	Gmb-4M-470 Aurora Bearing		78.98 EUR
	04-00906	Gmm-4M-675 Aurora Bearing		52.23 EUR
	05-01645	Gmm-4M-680 Aurora Bearing		130.40 EUR
	05-01648	Gmb-4M-680 Aurora Beaaring		140.10 EUR
