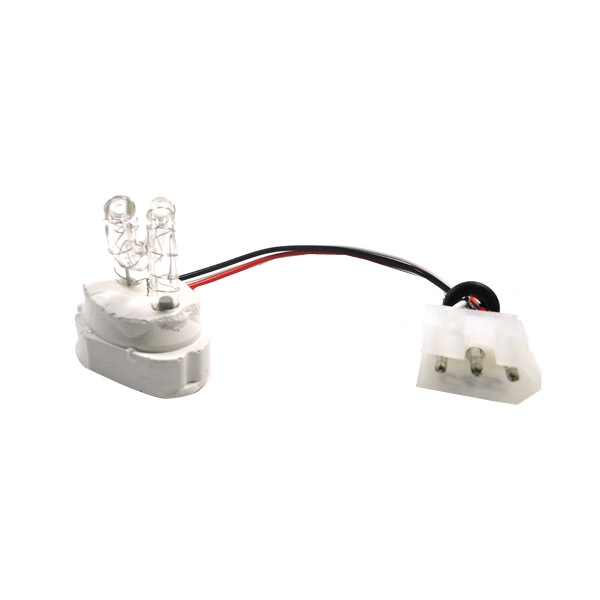

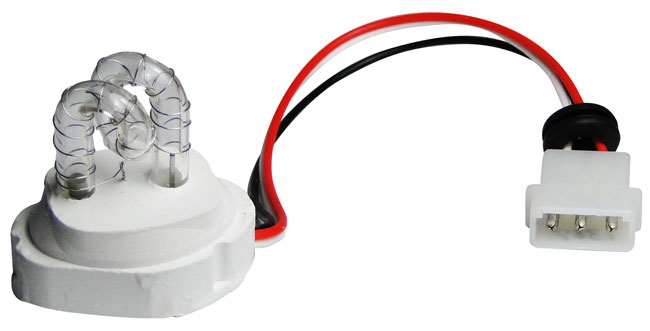

WHELEN A610 STROBE TUBE ASSY

A610 flash tube and A612 glass lens are used for installing wing tip strobes in single engine Cessna's 1972 and later. The existing position light retainer is modified to accommodate the lens, and the flash tube is mounted directly behind. The unique magnifying design of the A612 lens increases the light intensity by two to three times in the horizontal plane. These items may be used for custom installations or as spare parts for existing light assemblies. The A612 lens is available in Aviation Red and an RFI coated version. Lenses meet material requirements of MIL-C-7989B Class B.

Specifications

• Drawing Number A610: 50276
• Drawing Number A612: 90005
• A610 Flash Tube Weight: 0.09 lbs. (41gm)
• A612 Lens Weight: 0.08 lbs. (36gm)

MFG Model #: A610
Standard unit, 6" leads
