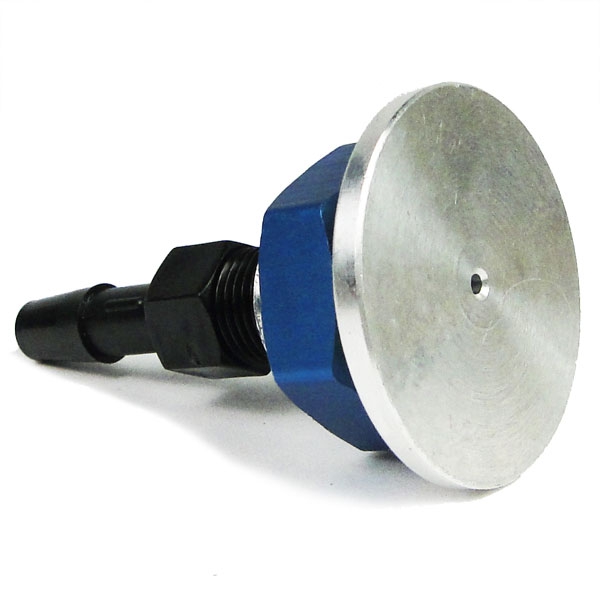

Aluminum static ports mount from outside of fuselage through 9/16" dia. hole. Secure with pal nut & lock washer on inside. Includes 0700-153 polyethylene fitting.

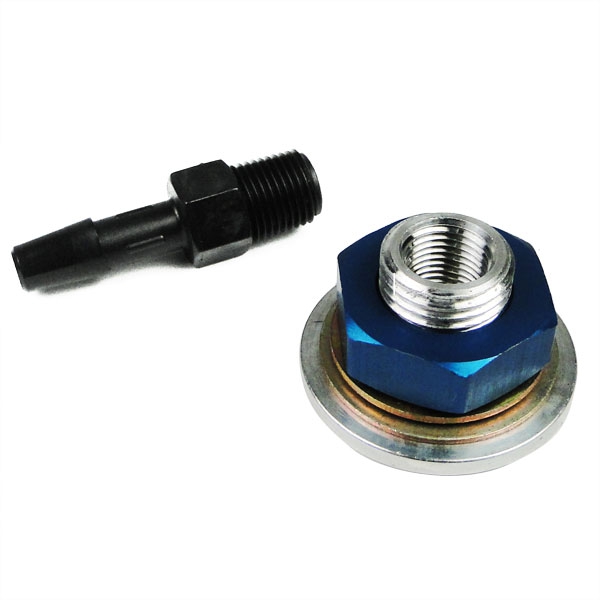

The 9/16" pal nut and lock washer are included with this static port kit.

What size tube attaches to this static port kit 15165?
the fitting for the port requires 1/4"I.D. hose.

Are these static port kits 15165 certified?
No, these are not certified. They are for experimental use only.

What size line / hose ID can you recommend with this part number?
You would need 1/4" I.D. rubber or polyurethane tubing. We have a few types to choose from, example 05-00944, 0500-071, etc...

What is the Max wall thickness this static port 15165 can be mounted to that still allows nut to be installed?
Approx. .125" is the max material thickness.
