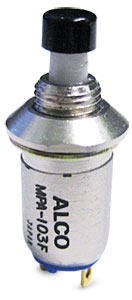

This sub-miniature push button switch, with one-piece bushing and case construction, is furnished with decorative beveled nut for finished appearance. It has a relatively high current carrying capacity (3 amps at 125V AC) and a life expectancy of 10,000 operations at rated current. Momentary type SPDT switch, ideal for use as a mike switch on control wheel. Furnished with . 205" dia. black push button. Body is .354" dia. x .650" long. Mounts in 1/4" dia. hole.
Unit
EA
Hazardous
No
Oversize
No
Weight
0.091 kg
