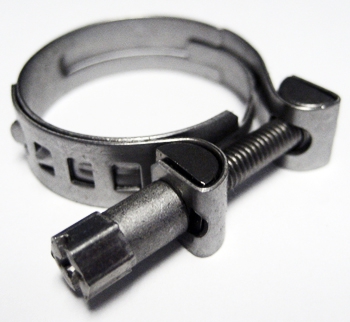

STEPLESS SCREW CLAMP # 075-9

Part number:

075-9

9.03 EUR

excl. VAT, excl. shipping

Expected shipping date is Monday 29 April if you order before 14:00 Monday 29 April. This information is valid for up to 3 PC

Available Quantities:

In 2 days:	3 PC
In 11 days:	4 PC

Description:

Oetiker stepless screw clamps feature a unique tongue-in-groove design to provide a perfect 360 degree seal. The narrow band width of 9mm is designed to fit grooved objects. They are ideal where specialty clamping needs have to be met and the application calls for a smooth inner surface such as on flexible duct sleeves. The tongue-in-groove design provides that stepless complete seal. Manufactured using 300 AISI series stainless steel.

PN	Min OD	Max OD
028-9	13/16	1-1/8
031-9	15/16	1-1/4
032-9	1-1/16	1-1/4
036-9	1-1/4	1-7/16
040-9	1-3/8	1-9/16
045-9	1-9/16	1-3/4
050-9	1-3/4	2
055-9	1-15/16	2-1/8
060-9	2-1/8	2-3/8
065-9	2-5/16	2-9/16
070-9	2-9/16	2-3/4
075-9	2-3/4	3
080-9	2-15/16	3-1/8
085-9	3-1/8	3-5/16
090-9	3-5/16	3-1/2
095-9	3-1/2	3-3/4
100-9	3-11/16	3-15/16
105-9	3-15/16	4-1/8
110-9	4-1/8	4-5/16
115-9	4-5/16	4-1/2
120-9	4-1/2	4-11/16
125-9	4-11/16	4-15/16
130-9	4-7/8	5-1/8
135-9	5-1/16	5-5/16
140-9	5-1/2	5-11/16
145-9	5-11/16	5-7/8
150-9	5-7/8	6-1/16
160-9	6-1/16	6-1/4
165-9	6-1/4	6-1/2

Unit	PC
Hazardous	No
Oversize	No
Weight	0.001 kg
Alternative P/N	17800133

This part is included in the following categories:

Start > airframe parts > clamps > oetiker stepless screw clamps
Start > airframe parts > hose > clamps > oetiker stepless screw clamps
Start > engine parts > clamps > oetiker stepless screw clamps
Start > engine parts > hose > clamps > oetiker stepless screw clamps
