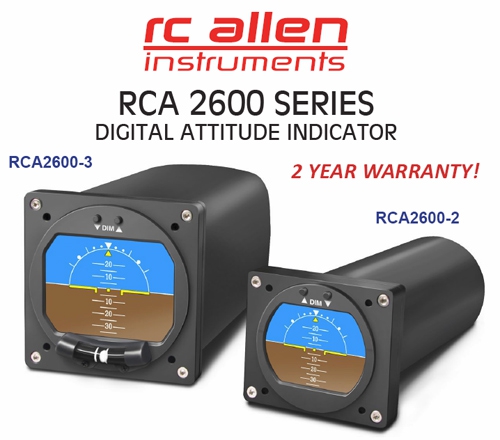

RC ALLEN 2600 2" ELECTRIC DIGITAL HORIZON GYRO 8 D

We are pleased to introduce the latest version of the popularRCA2600 Series Digital Attitude Indicator. We have made several enhancements; most notably the new compact design - only 1.5 inches deep! Inside, we have added a faster processor and increased its resistance to high vibration.

The 3-inch RCA2600-3 and the 2-inch RCA2600-2 are designed to look and react like a gyro instrument without the clutter of extra data. The RCA2600 is FAA certified and is perfect for replacing your primary AI or adding as a backup in whatever you fly!

• NEW LIGHTWEIGHT, COMPACT DESIGN
• HIGH VIBRATION RESISTANT
• TOTALLY SELF-CONTAINED
• EASY TO INSTALL
• BRIGHT, ADJUSTABLE DISPLAY
• FAA CERTIFIED

Features

• 360 degrees of pitch and roll
• Multi-volt operation (9 to 32 volts)
• Bright, highly visible LCD Display
• Fits any standard 2" panel cutout.
• Totally digital operation (no moving parts)
• Lightweight (16 oz.)
• Adjustable brightness and airplane adjust controls
• TSO-C4c Certified.

Specifications

• Operating Voltage: 9 to 32VDDC
• Starting Current: 9VDC: 0.18 to 0.22 AMPS MAX
• Running Current: (14VDC system) 0.20 AMPs MAX, (28VDC system) 0.18 AMPs MAXa
• Circuit Breaker Size: 2AMP
• Settling Error: 1 Degree Maximum in Roll and Pitch
• Operating Temperature Range: -30 degree to +50 degree C

Model: w/ 8 Degree Tilt
