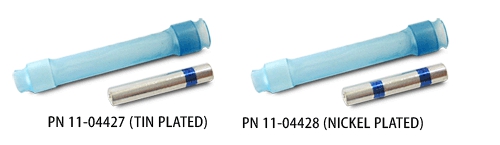

RAYCHEM BUTT SPLICE BLUE D-436-37

Part number:

11-04427

3.08 EUR

excl. VAT, excl. shipping

Available Quantities:

unknown

Description:

Heat-Shrinkable crimp butt splices completely insulate and protect electrical connections from water, condensation, salt and corrosion. Provides strain relief and protects against wire pull-out and vibration in the most rugged environments. Qualified to MIL-S-81824/1.

Price and sold individually.

Blue AWG: 20-16 -- I.D. dimensions (mm/in) Crimp barrel size range 779-2680(CMA) 0.39-1.34(mm) Side 1 (Sealing Insert: 2.79(.110) / Max. no. of wires: 2) Side 2 (Sealing Insert: 2.79(.110) / Max. no. of wires: 2)
