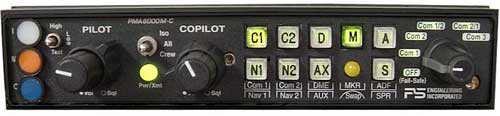

PS ENG PMA 6000 AUDIO PANEL

The PMA 6000 combines an audio selector panel with a top-quality
intercom and a slew of features to enhance versatility and utility.
Among the high points:

• Designed to be pin-compatible with the popular Bendix/King KMA-24 audio selector panel, the PMA 6000 takes advantage of existing wiring to smooth installation.

• Built-in 6 place mono intercom provides synergistic capabilities.
  The PMA 6000 has a built-in marker beacon receiver.

• Split mode allows the pilot and copilot to independently and simultaneously use both radios, even transmitting simultaneously on different frequencies.

• Pilot and crew/passenger isolate functions are an integral part of the design.

• Dual music input jacks for passengers and crew are standard feature.

• Independent volume and squelch controls for pilot and copilot are standard.

• PSE's renowned Soft Mute technology gently and subtly ramps the music down when conversation comes across either the intercom or the radio.

• A patented "swap" function (Patent #5,903,227) allows pilots to use a yoke-mounted switch to select Com 1 and Com 2 options without reaching for the panel.

• High quality, voice-activated circuitry and individual microphone channels form the heart of the intercom system.

• Passengers have their own voice and audio amplifiers.

• Backlit switches linked with a photo sensor carefully calibrates panel lighting to cockpit levels for all situations.

• Fail-safe feature automatically hard-wires the pilot to Com1 in the case of an outage.

A Digital Recorder is available as an option. This continuous loop digital recorder stores all aircraft radio activity on the selected transmit radio. Up to 1 minute/16 messages are stored.

Specifications

• Height: 1.3 inches
• Width: 6.25 inches
• Depth: 6.8 inches
• Weight: 0.8 pounds
• Power Requirement: 12 to 24 VDC
• Warranty: 1 year
• Unit is TSO'D

On all PS Engineering audio panels, a wiring harness must be done by PS Engineering or a PS Engineering dealer or the warranty is void.
