KANNAD PROGRAMMING
DONGLE INT Can be use with the following Kannad ELT models: (AF-COMPACT, AF, AF-H, AP, AP-H, AS, SURVIVAL)

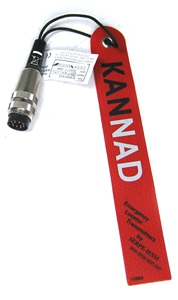

A special DIN12 connector with a serial memory module (Called "Programming Dongle") is connected to the ELT when installed onboard. This programming dongle contains the identification information of the aircraft and remains onboard the aircraft. When an unprogrammed ELT is installed and connected to to this programming dongle and the "ELT" is switched to "ARM", it automatically updates its own memory with the identification data contained in the programming dongle memory. When the ELT is removed from the aircraft, it keeps its identification data.
Unit
EA
Hazardous
No
Oversize
No
Weight
0.113 kg
Alternative P/N
S1820514-06
This part is included in the following categories:
