FL1 Actuator 12 Volt

FL1 ACTUATOR 12 VOLT

Part number:

05-66223

1038.10 EUR

excl. VAT, excl. shipping

Available Quantities:

unknown

Description:

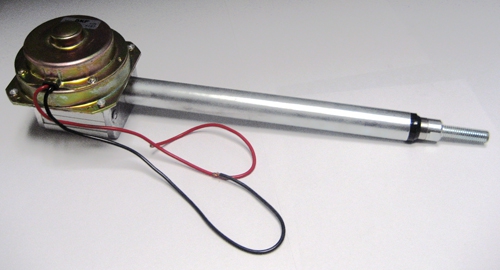

The FL1 (FL1-24) ACTUATOR offers a unique standard of performance, durability and reliability. The compact design incorporates well-proven parts, like the high efficiency ball screw, a sturdy gear box assembly and fitted with compact high quality DC motor. DC motors are available in both 12 & 24 volt. All give the best performance with unsurpassed operational life. The actuator is self-locking within the dynamic load range. The actuator is manufactured with the capacity of 1500 N maximum dynamic load and 2200 N is static. The stroke is 150 mm and with speed of 10-15 mm per second.

Unit	EA
Hazardous	No
Oversize	No
Weight	1.483 kg

This part is included in the following categories:

Start > airframe parts > flap actuators > flap linear actuator as used on lancair
