EMERGENCY BEACON EBC-406HM MILITARY ELT USA

Part number: 11-05921
EMERGENCY BEACON EBC-406HM MILITARY ELT USA
4160.84 EUR
excl. VAT, excl. shipping
EA
please call
Available Quantities:
unknown
Hazardous materials

Hazardous Materials!

Description:

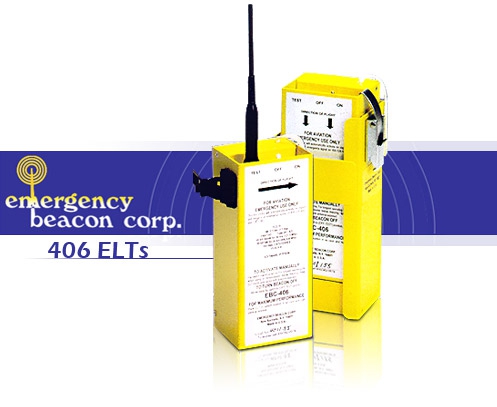

The EBC 406 is the first of the new line of digital EBC ELT's. Designed with the newest technology it also incorporates the best and proven features that characterize all of EBC's emergency locator transmitters. These transmitters have encapsulated electronics and battery packs to provide for added protection against shock, moisture, and other environmental hazards. They have a built-in monitor that emits a loud beeping tone if the ELT is activated. They can be activated either automatically or manually.

The EBC 406 lines of emergency locator transmitters have been designed with installation flexibility in mind. The EBC 406 AP-Series ELT should be installed in the cabin of the aircraft. Installation near the pilot eliminates the need for a remote control, thus reducing the installation costs and eliminating the need to use precious panel space. Installation in the cabin also allows for easy removal of the ELT in case of an actual emergency - just disconnect the external antenna coax cable and attach the survival antenna. The EBC 406 AF-Series should be installed in the tail section of the aircraft for those who prefer that ELT location. In that case, a remote unit is provided for the aircraft panel so the the ELT can be controlled by the pilot. As with the cabin mounted unit, survival antenna is used when the transmitter is removed from the aircraft. All EBC 406 ELT's have a built-in self test feature that allows the pilot to check 406 power and the antenna-coax connection. Both cabin and tail mount ELT's use an external antenna.

Features

  • Operating Freqs: 406.028 MHz and 121.5 MHz
  • Output Power on 406 MHz: 5W for 24 Hours at -20C
  • Output Power on 121.5 MHz: 50mW min for 50 Hours at -20C
  • Operating Temperature: -20C to +55C
  • Battery Type: Lithium Manganese Dioxide
  • Useful Battery Life: 5 Years or 1 Hour of Cumulative Use
  • Modulation 406 MHz: Biphase L (16KOG1D)
  • Modulation 121.5 MHz: Swept Tone 1600Hz to 300 Hz, 2-4
  • Times/Second
  • Automatic Activation: Velocity Change of 4.5 feet per Second
  • Altitude: 50,000 feet
  • Decompression: 8000 feet to 40,000 feet
  • High Pressure: -15,000 feet
  • Humidity: 95% for 50 Hours
  • Shock Performance: Withstands 500G's on 6 axes
  • Vibration: Withstands 10 G's
  • Immersion: Withstands 24 hours in Salt Water
  • Warranty: 2 Years, Made in the USA.

Cabin mounted tri-frequency ELT (406.028, 121.5 and 243.0 MHz) finished in non-reflective flat black for night vision equipment contractility. With integral antenna, omni-directional helicopter activation system and battery pack.

UnitEA
HazardousYes
OversizeNo
Weight1.134 kg
