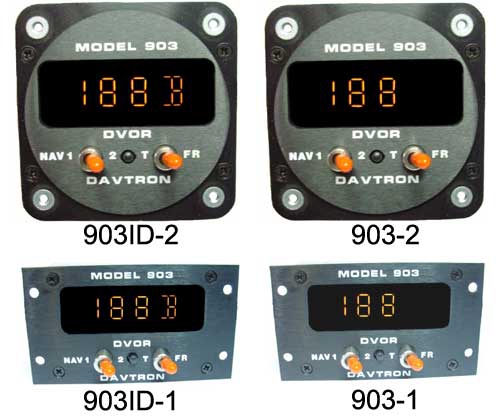

Davtron Digital VOR Indicator 903-ID-2 Round Mount with Ident

Davtron M903 Features

• Automatic VOR position Orientation
• Localizer deviation and centerline
• Alphanumeric station identifier
• Instant To/From switching
• Digital filtering and signal processing
• Sunlight readable incandescent display
• Automatic Display Dimming
• Serial ASCII output of station and radial OFF flag, "---"
• FAA/PMA APPROVED </ul>

  Download M903 Brochure

  DAVTRON FAA/PMA # PQ1062NM

  FAA/PMA Approvals:
  Beech Models 35, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, 35-33, and 35-133

  ---

  • Input Voltage: 14 to 28 Volt
  • Input Signal: 0.35 to 10 Volts
  • Supply Current: 0.3 Amps
  • Operating Temperature Range: -20°C to +55°C
  • DVOR Accuracy: +/- 2 degrees
  • Weight: 6 ounces
  • Warranty: 1 year

  ---

  • M903 Electrical
  • M903-2 Overall Dims
  • M903 Continuing Airworthiness
