Combo Rivet - Rivet Nut Tool Kit from Aircraft Spruce Europe

Combo Rivet - Rivet Nut Tool Kit

Part number:

12-01136

501.31 EUR

incl. 19% VAT, excl. shipping

Available Quantities:

unknown

Description:

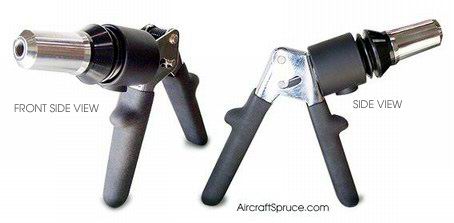

The D100-RN hand operated hydraulic tool is ideally suited to the needs of the aircraft homebuilder. The tool develops 3,500 lbs. of pulling force which permits the installation of all Cherry Commercial Blind Rivets or any other Pop type rivets through 1/4" diameter as well as all CherryMax rivets through 3/16" diameter. Will not pull Cherry Lock rivets. The D100-RN quickly converts to a threaded blind nut setter to allow efficient installation of Rivnuts or similar blind nuts. The kit includes the D100 hydraulic tool with adapters for blind rivet and blind nut installation, rivet nosepieces for 1/8", 5/32" and 3/16" diameter blind rivets, blind nut pull-up studs with nosepieces for 6-32, 8-32, 10-32 and 1/4-28 Rivnuts, operating instructions and a rugged Plastic storage case. Size: 12-1/2" x 8-1/4 x 3'. Weight: 3 lbs.

Unit	EA
Hazardous	No
Oversize	No
Weight	1.089 kg
Manufacturer
Manufacturer P/N
GTIN
Core Charge	Yes (add to cart to see price)
110V device	Yes
