AVEO BOT BLUE AVRR01 BP 12B

Part number: 11-06645
AVEO BOT BLUE AVRR01 BP 12B from Aveo Engineering
31.60 EUR
excl. VAT, excl. shipping
EA
Delivery in 12 days
Expected shipping date is Wednesday 10 April if you order before 16:00 Wednesday 03 April. This information is valid for up to 1 EA
Available Quantities:
In 12 days:1 EA
Description:

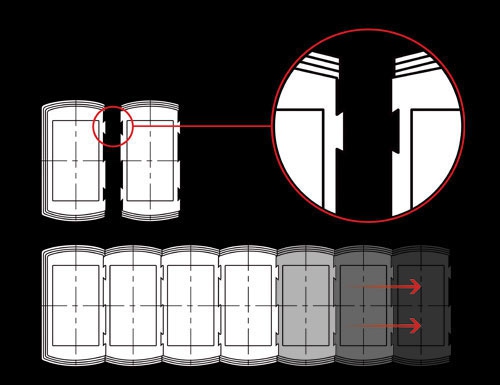

The exclusive RockRack™ system from Aveo permits the pilot to build up his cockpit rockers to meet his particular needs. With numerous standard aviation-specific icons to pick from, the pilot can make just one simple cutout for whatever number of rockers he wants, starting with a single rocker up to a complete lineup, due to the unique locking "dovetail" stacking system of the switch housings as shown in this diagram:

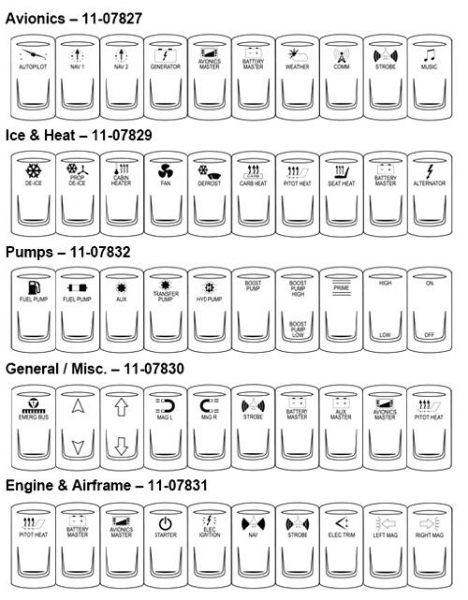

The Aveo RockRack™ LED custom-icon rockers switches now feature an expanded set of icons, more than 50, and a new OFF position bar stripe indicator at the bottom of the switch cover. Pre-Packed in a new 10-pack configuration are available.
  • Aviation Icons backlit with LEDs
  • More than 50 icons
  • Only one cutout needed for any stack size
  • Integrated resistors
  • Quick-Connect Connectors up to 10 terminals
  • Ultrasonic welding seals
  • Removable actuator
  • 150,000 cycle mechanical life
  • 12 volt or 24 volt
  • 10A@24VDC

  • 2 Volts or 24 Volts
  • 150,000 cycles minimum mechanical life
  • Water & petroleum resistant according to EN61058-1
  • Tear resistant according to NF ISO 2409 Class 0
  • UV resistant according to ISO 4892-2
  • Gold plated contacts
  • LED consumption : 20mA@nominal voltage at 25º C
  • Meets or Exceeds All FAA & EASA Requirements



UnitEA
HazardousNo
OversizeNo
Weight0.023 kg
ManufacturerAveo Engineering
