Shipping country set to GermanyTOGGLE SWITCH MS35058-22
| Part number: | AN3021-2 |
23.48 EUR
excl. VAT, excl. shipping
Will ship tomorrow if you order before Monday 06 May 14:00. This information is valid for up to 5 EA
Available Quantities:
| In 1 day: | 5 EA |
| In 10 days: | 61 EA |
Description:
Toggle switches are available with two or three operating positions, 1 or 3 hole mounting and a variety of circuitry & electrical ratings. Contacts are made of solid silver. Wide usage is found in aircraft, mobile, marine, electronic and industrial applications. Available in full "AN" standard size & Ultra Miniature 1/2" size. Leading manufacturers of toggle switches are Micro Switch, Alcoswitch, Cutler Hammer, & JBT, now Cutler Hammer. Orders will be filled with switches of the manufacturer whose product is available in local stock.
- Tech Data Sheet (PDF)
| AN No. | MS No. | Mfgrs. PN | Contact | Toggle Circuit* |
| AN3021-1 | MS35058-21 | JBT - MS No. | SPDT | 1 |
| AN3021-2 | MS35058-22 | JBT - MS No. | SPST | 2 |
| AN3021-3 | MS35058-23 | JBT - MS No. | SPDT | 3 |
| AN3027-1 | MS35059-21 | JBT - MS No. | DPDT | 1 |
| AN3027-2 | MS35059-22 | JBT - MS No. | DPST | 2 |
| AN3027-3 | MS35059-23 | JBT - MS No. | DPDT | 3 |
| AN3027-7 | MS35059-27 | JBT - MS No. | DPDT | 5 |
| AN3027-4 | MS35059-24 | JBT - MS No. | DPST | 7 |
Q+A
What Amp rating is the AN3027-2 switch?
This is a 20 amp switch.

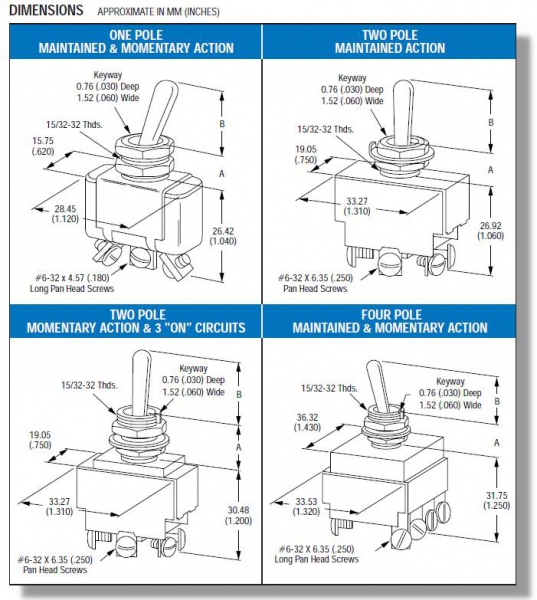

Does the AN3021-2 measure approximately 1-1/8" x 5/8"?
Yes, these are the approximate dimensions: 1-1/8" L x 5/8" W x 5/8" H.
When the chart shows "None" in a given position (e.g. center position), does that mean that the switch does not have that position? In my example, with None in the center position, the switch just moves from On for Up to Off for Down?
Correct. With "None" in the center position, the switch will toggle only all the way up to all the way down.
Are these Toggle Switches acceptable for 14V dc system?
Per the manufacturer and the Technical data sheet, these Toggle Switches are designed for a 28V DC system.
| Unit | EA |
| Hazardous | No |
| Oversize | No |
| Weight | 0.032 kg |
| Alternative P/N | 8801K22 |
