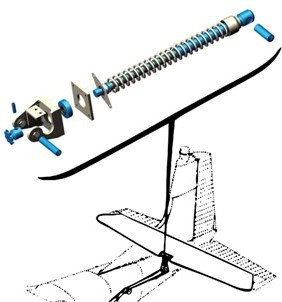

This is a FAA-PMA/STC Stabilizer Jack Screw Actuator Kit for Cessna models 180, 180A-K, 182, 182A-C, 185, 185A-E, and A185E-F aircraft. Directly replaces the original Cessna assembly.

The original low-grade steel components have been replaced with duplex stainless steel for extreme corrosion resistance even in a harsh saltwater environment. This high strength stainless steel was developed by the British for under-sea concrete reinforcing. Saltwater does not have any effect on this steel. Precision bearings are used with precision machining to reduce free play, while using extra-low temperature grease for easy turning in low temperatures. For improved strength and reliability, McFarlane redesigned the sprocket and retaining collar to allow for the use of a 5/32" roll pin for attachment, as opposed to the 3/32" roll pins originally used. This more than doubles the strength of the design. Bushings and a stainless steel chain with connectors are included.

• Supplemental Type Certificate
• PMA Supplement 52
• Eligible Aircraft

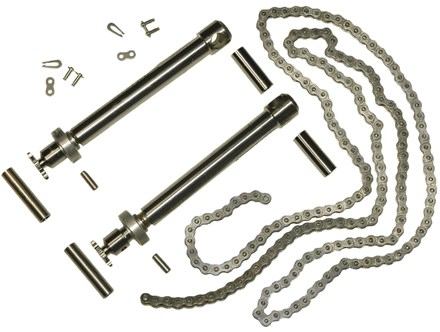

• Stabilizer jack screw actuator kit includes all parts required to replace the following Cessna parts in both the left-hand and right-hand actuators:
  0310332 Sprocket
  0432138-3 or S2295-25-185 Chain
  0712500-7 Collar-retainer
  0712500-10 Bushing
  0712500-11 Screw bar
  0712500-13 Barrel
  0712500-19 Plug
  0712502 Bushing, eccentric
  MS20201KP6A or AN201KP6A Bearing
  NAS561-3-8 Roll pin
