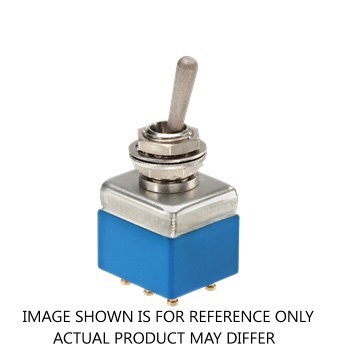

MINI. TOGGLE SWITCH T3-11251

• MIL No. MS27719-27-1
• OTTO NO. T3-11251
• Circuit: mom-off-mom

These miniature toggles are rugged, highly reliable switches offering positive detent action for safe switching operation. Featuring the unique OTTO snap-action switch mechanism in conjunction with a unique toggle actuator design, the T3 series offers snap-action contact actuation.

High contact pressure and superior wiping action of the OTTO design makes the T3 series an excellent choice for switching loads from logic level up to 5 amps.

15/32" sealed bushing construction, momentary and/or maintained operation.

Mounting hardware provided includes two hex nuts, one lockwasher and one keyway washer.

Note: MOM designates Momentary On.

• Snap-action contact actuation
• Shorter behind panel depth
• Superior wiping action keeps contacts clean
• Positive tactile response prevents operating errors
• Weighs up to 25% less than competitive products
• More contact/terminal plating choices
• Highly reliable: simpler design, fewer parts
• Black matte finish available (contact factory)
• RoHS/WEEE/Reach compliant
