Lamar B-00266-2 Ov Relay 28V

Part number:

07-01148

501.29 EUR

incl. 19% VAT, excl. shipping

Available Quantities:

unknown

Description:

Lamar PN B-00266-2

Description Overvoltage Relay, 28V, Piper

Applications Piper: PA23-235, PA23-250, PA31 Series, PA36 Series, Islander*, BN2A, BN2B, BN2T. BN2T-4, Trislander*, BN2A MK 11 Series

Part No. 07-01148

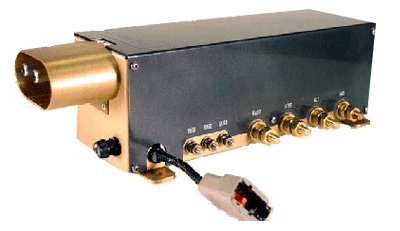

The Lamar MC10 is a master electrical control unit developed for 14V and 24V single engine experimental aircraft. It is designed to mount on the firewall or fuselage. It houses all the major electrical components except for the battery, starter, and alternator. The MC10 provides a greater degree of protection against moisture, dust and accidental electrical shorts along with the convenience of all the primary electrical components in one location. Features low installation cost, ease of installation and simplified troubleshooting and repair with several new performance and safety features.

* All astricked items are available through OEM only.

Master (battery) (solenoid) control closing the master switch on pilot's panel connects the battery to the primary bus
3 aircraft bus outputs, protected via resetable circuit breakers
Alternator Control; voltage regulation, overvoltage protection, field output over-load protection, alternator feeder fault protection
Starter control (solenoid)
Low voltage warning.(L model also includes overvoltage, over-current and reverse-current annunciation)
Battery charge/ discharge ammeter drive (current shunt)
Clock output (always-on) pro-tected with easily accesible external mounted fuse
Ground power receptacle & control (solenoid) with reverse polarity protection

Unit	EA
Hazardous	No
Oversize	No
Weight	0.064 kg
Manufacturer
Manufacturer P/N
GTIN
Core Charge	Yes (add to cart to see price)
110V device	Yes
