Gascolator Mounting Flange from Aircraft Spruce Europe

Gascolator Mounting Flange

Part number:

05-00907

54.88 EUR

incl. 19% VAT, excl. shipping

Expected shipping date is Wednesday 14 January if you order before 16:00 Wednesday 07 January. This information is valid for up to 10 EA

Available Quantities:

In 7 days:

10 EA

Description:

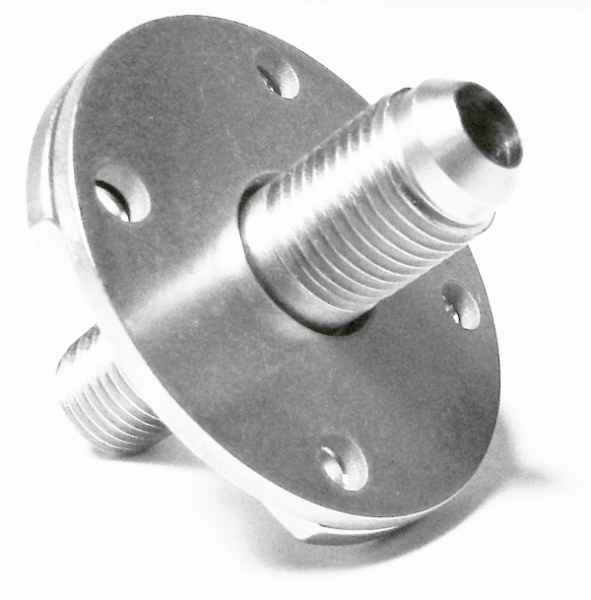

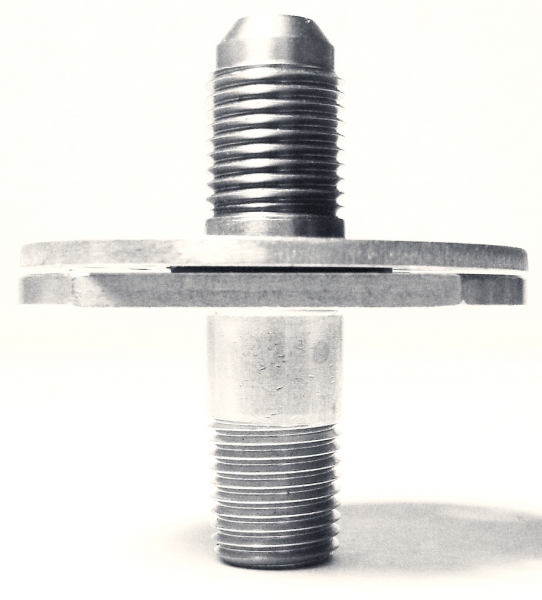

Includes mounting flange and backing plate. Mount your gascolator solidly on the firewall with this special bulkhead fitting. Simply drill a 5/8" hole through the firewall and a backing plate on the cabin side and rivet the 1-1/2" x 1/8" flange to the firewall. Connect the incoming fuel line to the AN6 male tube fitting on the cabin side. Screw the gascolator onto the 1/4" male pipe (on the engine side). Machined from mild steel (303 stainless steel).
Made in USA
