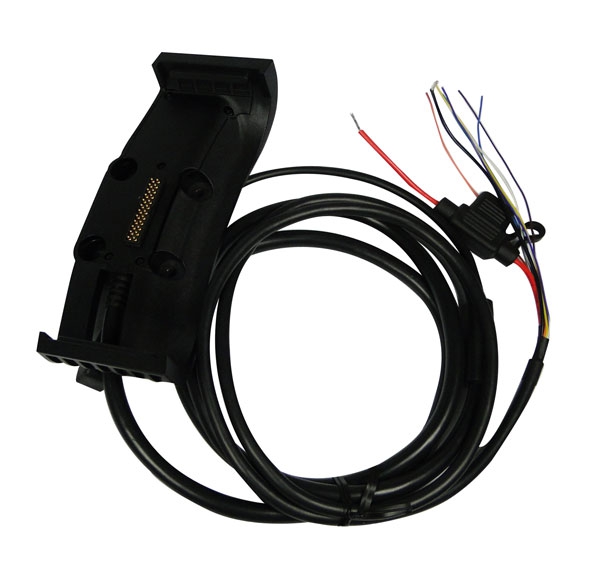

GARMIN AERA 796 795 POWER DATA CABLE

Part number:

11-10044

97.77 EUR

incl. 19% VAT, excl. shipping

Expected shipping date is Wednesday 02 October if you order before 16:00 Wednesday 25 September. This information is valid for up to 4 EA

Available Quantities:

In 11 days:

4 EA

Description:

The Garmin Bare Wires Aviation Mount expands the communication possibilities of the Aera using the aviation mount with connected power cable. Connect the bare wires to a panel mount product to transfer data, such as flight plans to your Aera. Also, you can connect to a panel-mounted radio to transfer data from the Aera to the radio and you can connect to a transponder to display air traffic on the Aera. Simply attach the aviation mount to the yoke mount using the included mounting hardware. Compatible with Garmin Aera 795 and 796.

Q+A

What size fuse is on the 796/795 bare wire cable?
It is a 3 amp fuse or you can run a 3 amp circuit breaker as well.

Will this also power the GDL 39 unit?
No, it will not. This is just a power data cable for the 796 & 795. Garmin does sell a GDL 39 / 796 & 795 cable to power and connect both (11-10736).

Will the Garmin 796 interface with the JPI 830 engine analyzers fuel system?
Yes, with the power data cable you can connect to the JPI 830 so that the 796 can output GPS data to the JPI. The EDM 700/800/760/730/830 and the Garmin 196/296/396/496/696/695/795/796 must share a common ground No EDM programming needed NMEA Output > NMEA-183 Out.

Unit	EA
Hazardous	No
Oversize	No
Weight	0.340 kg
Alternative P/N	010-11756-01
